Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | LEDLINE ASTON 1220 WHT 6500K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ASTON 1220 WHT 6500K | LED Type: | Lumileds 2835 |
|---|---|---|---|
| Beam Angle: | 120° | IP Rating: | IP67 |
| Max. Run Length: | 16M@10w | Life Span: | >54000H |
| High Light: | SIDE 1220 LED Neon Strip JRLite,Dot Free neon led strip lights JRLite,6500K LED Neon Strip |
||
Product Description

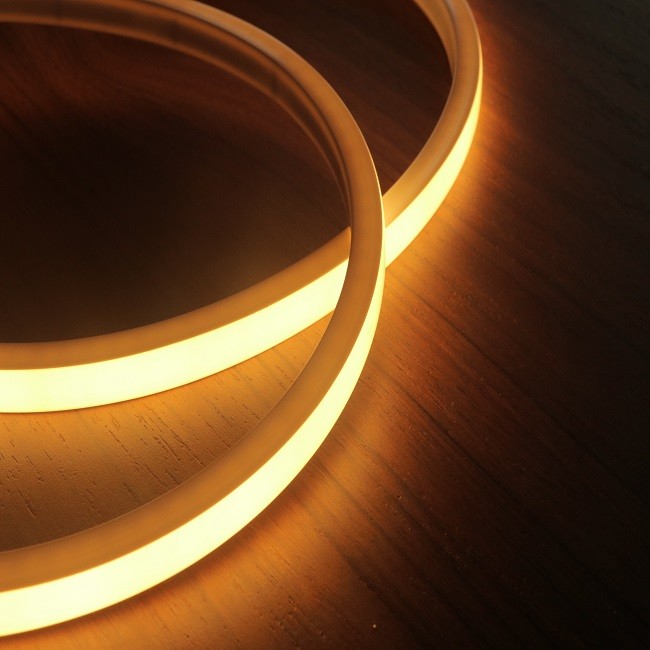

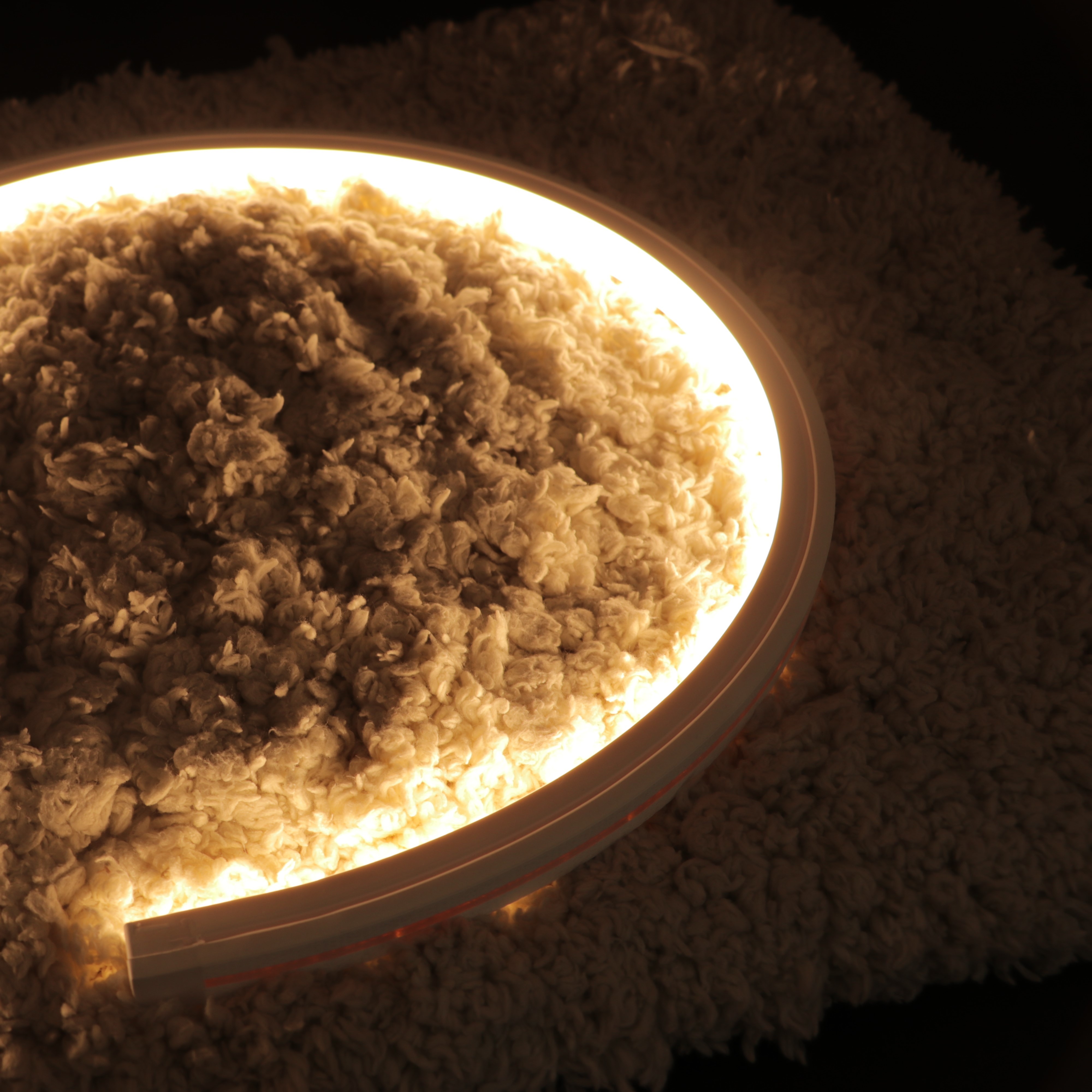

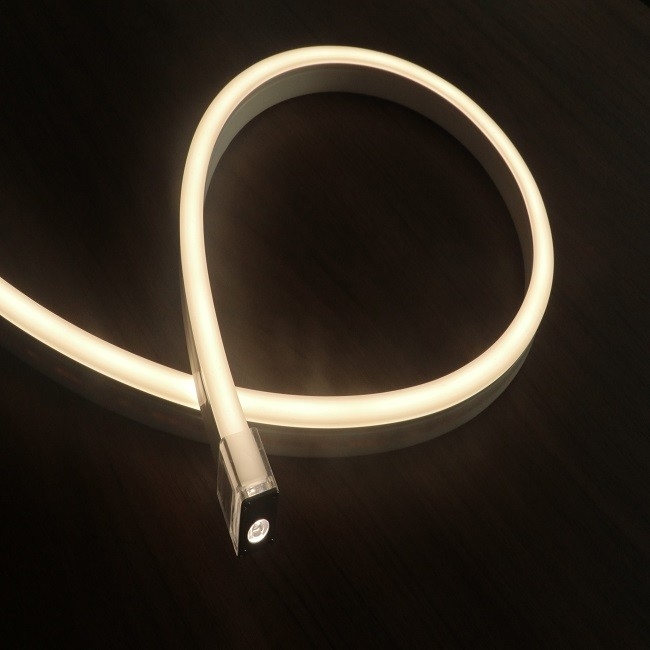

Dot Free Flexible Silicone Led Strip 12x20 Side Bending IP67 Waterproof For KBB
Quick Detail Of LED Neon Strip:
· Size 12x20mm(WxH) / 0.47" x 0.79"(WxH)
· UV-resistance(no yellowish)
· Lumileds LED SDCM<2
· 120º beam projection
· Maximum run length 16M@10W
· IP67 rating
· Cable entry directions: Front/ Side/ Bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
· Customized cable length as you need
· Suitable for indoor and outdoor.
Specification Of LED Flexible Strip Lights:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | LEDLINE ASTON 1220 WTH-65 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 16M@10w |
| CRI | Ra90 |
| LED Color | Cool white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 6500K |
| Power(W/M) | 5W/M,10W/M,15W/M |
Feature Of LED Flexible Strip Lights:
Application Of Flexible LED Strip Lights:
Installation Notes
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE FLEX SIDE WHT is 300mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
FAQ:
Q1: Are you a factory or trading company?
A: We are a LED strip and neon flexible manufacturer with more than 10 years of experience.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A: 2-4 weeks after payment.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
