Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE ASTON 1220 WHT 3500K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Voltage: | DC24V | Neon Size: | 12mm*20mm |
|---|---|---|---|
| Bending Direction: | Side Bending (horizontal Bending) | Cutting Interval: | 50mm |
| Max Run Length: | 14m | Endcap Option: | Injection Silicone Mechanical |
| CCT: | 3500K | Certificate: | CE RoHS TUV UL Compliant |
Product Description

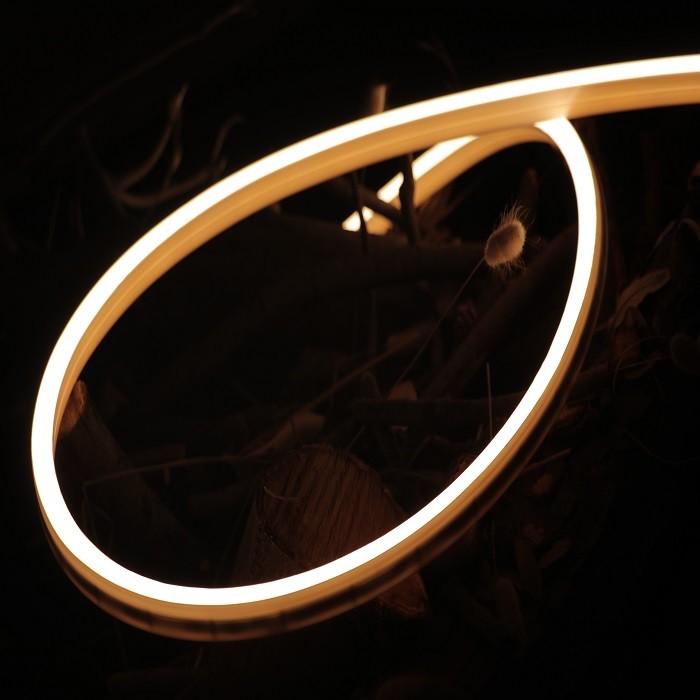

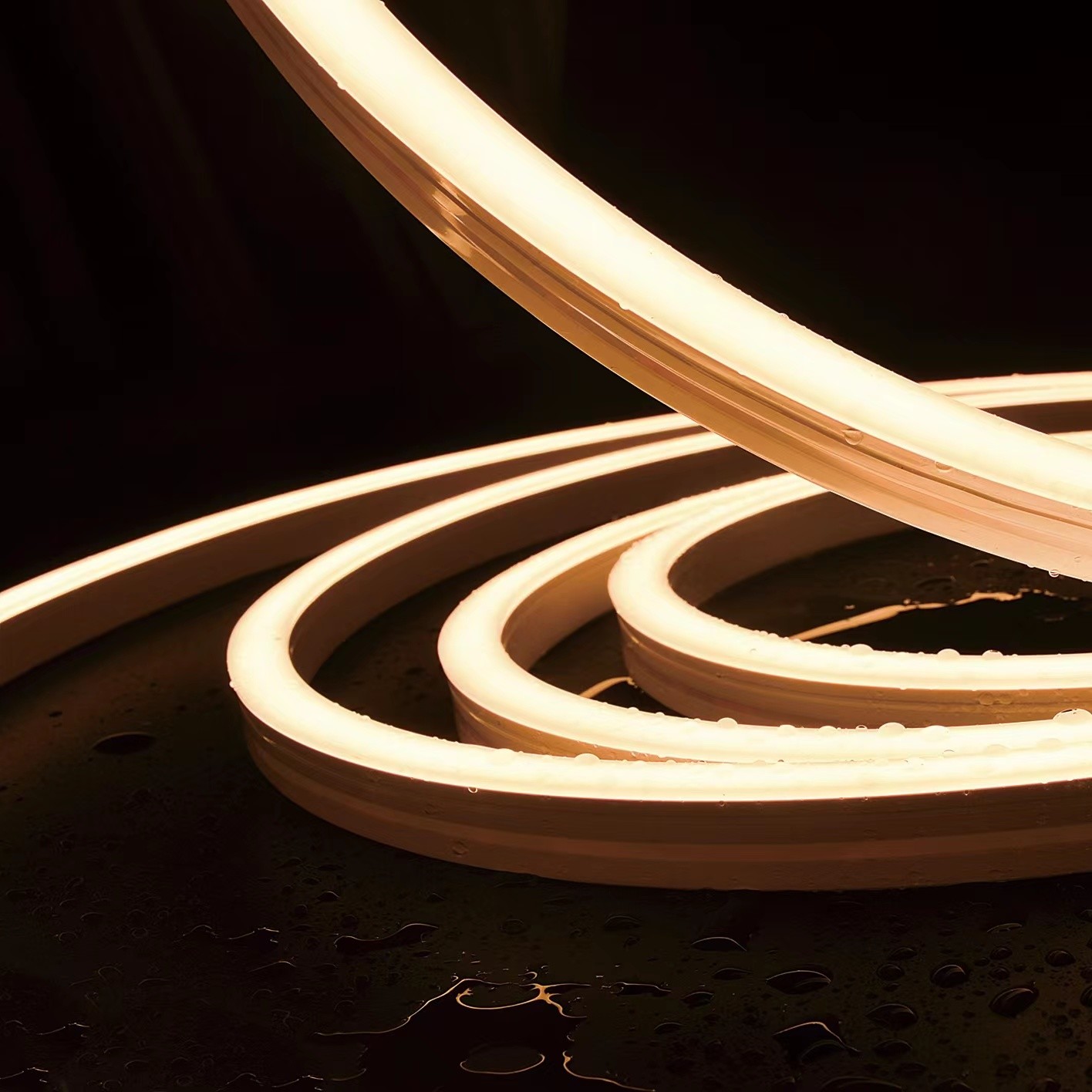

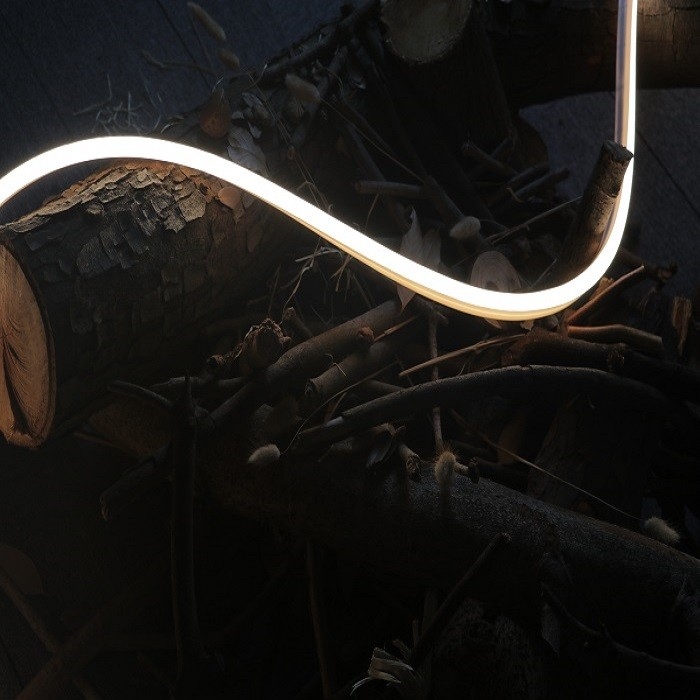

1220 WHT 4000K Silicone LED Neon Lumileds SMD 2835 DC24V IP67 5 Years Warranty
Quick Detail:
· Voltage: DC24V
· Neon Size: 12mm*20mm
· Bending Direction: Side bending (horizontal bending)
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CCT:3500K
· Max Run Length: 13m
· IP Rating: IP67
· Endcap Option: Injection, Silicone, Mechanical
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Description:
IP67 protected, UV resistant, chemical resistant and DIY connectors for indoor & outdoor solutions. Very easy to cut & reconnect on site. -2-Step MacAdam bin and dot free lighting guarantee the most excellent performance over the rated lifetime.
Specifications:
| Model | ASTON 1220 WHT 4000K |
| SMD Type | 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 15W/m |
| LED Color | 4000K |
| Input Voltage | DC24V |
|
LED PIN Temperature
|
Max. 65℃ /149o F
|
| Neon Dimension | 12mm*20mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 475LM/M |
Download datasheet: LEDLINE ASTON 1212 WHT Datasheet.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1.Max production length 30meters per reel, and the standard packaging is 10meters per reel.
2.Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.
3.Patented easy endcap achieves mechanical IP67 waterproof without any glue.
4. Please light it up for a quick check before installation. Bending diameter of ASTON 1220 WHT is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
5. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
6. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor Underwater IP68 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
