Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | ERP LEDLINE ASTON 1220 HE-40 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P, T/T，Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Material: | ERP LEDLINE ASTON 1220 HE-40 | ERP Classification: | G |
|---|---|---|---|
| Color Temperature: | 4000K | LED Color: | Warm White |
| IP Grade: | IP67 | Power(W/M): | 9.6W/M |
| Beam Angle: | 120° | LED Type: | Lumileds 2835 |
| Life span: | >54000hrs | LED PIN Temperature: | Max.65℃ |
Product Description

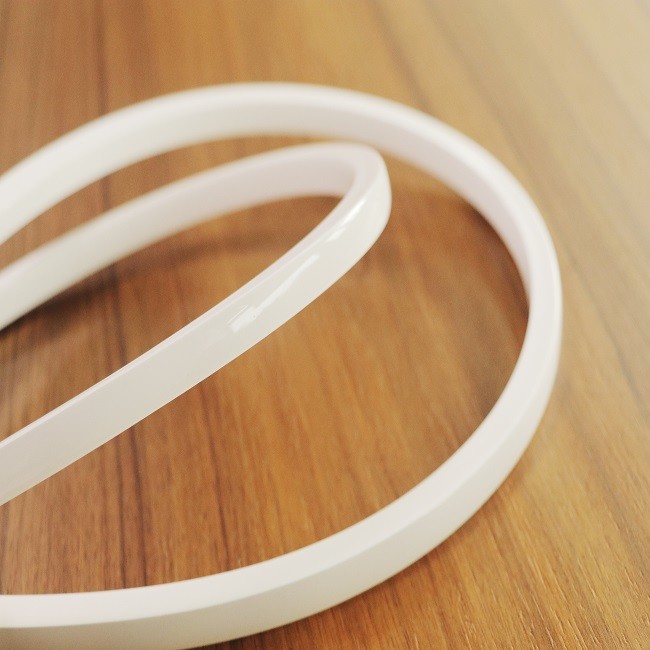

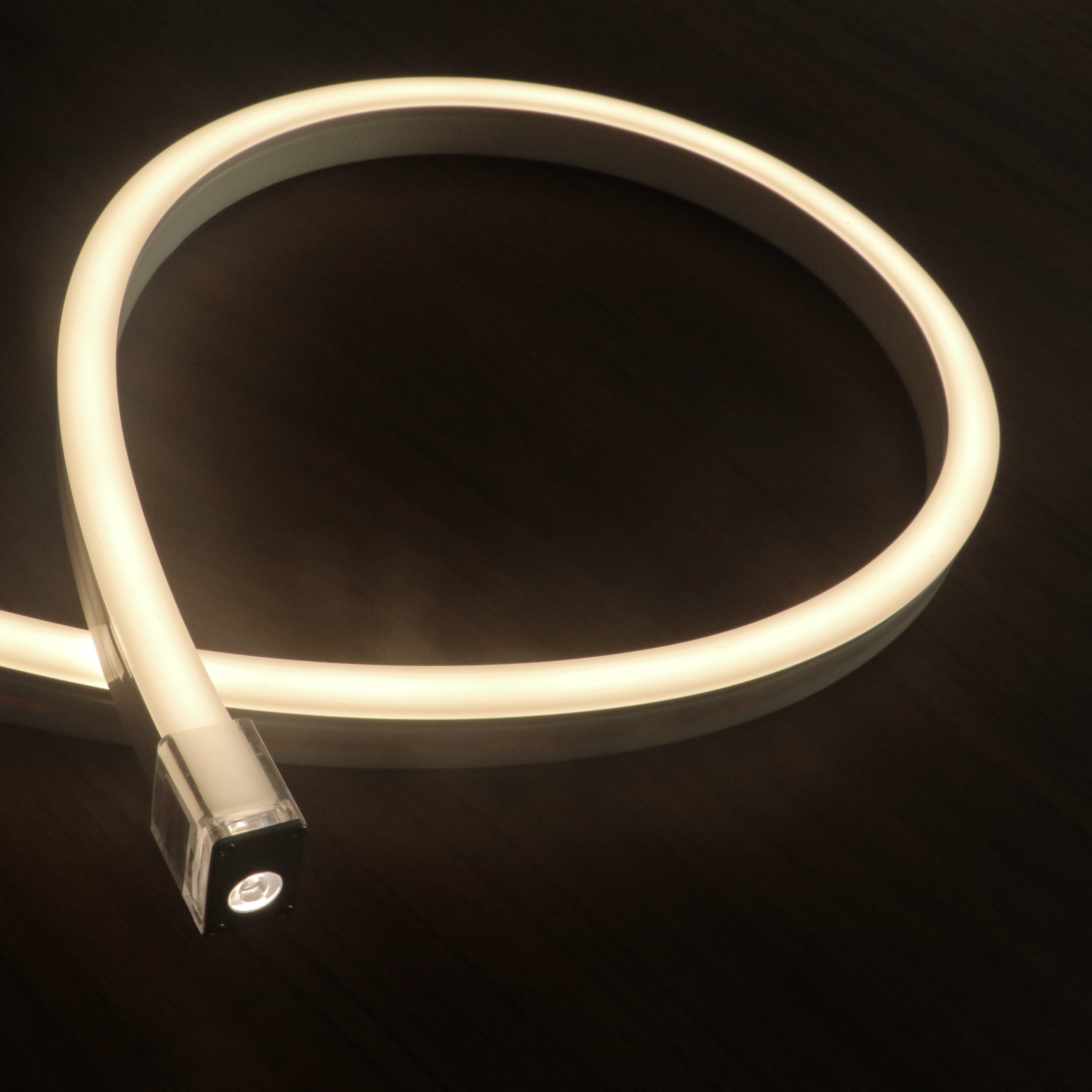

ERP 9.6W IP67 Qualified 4000K High Efficiency Silicone Neon 1220 Side Bending
Description:
Neutral white 24Vdc high efficient silicone led neon, with 160leds/m. Its cross section size is 12mm x 20mm/ 0.47" x 0.79" (W x H), which is horizontal bending with radius of 120mm / 4.72". It’s IP67 protected, suitable for both indoor and outdoor applications. 3-Step MacAdam bin and dot free lighting guarantee the most excellent performance.
Quick Detail:
· ERP Qualified silicone neon
· ERP classification: G
· Size 12mm x 20mm/ 0.47" x 0.79" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· Maximum run length 5M
· Max production Length: 30m/roll
· 48W power consumption(5m/roll)
· IP67 rating
· Cable entry directions: Front/Side/Bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
| Model | ERP LEDLINE ASTON 1220 HE-40 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra80 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Working Energy Consumption(kWh/1000h)0.5m | 4.8 |
| Lumen Maintenance Factor | 0.96 |
| Color Temperature | 4000K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 9.6W/M |
| Power(W/0.5M) | 4.8W/M |
| LM/0.5M | 443lm |
| Efficiency(LM/W) | 92lm/w |
| ERP classification | G |
Dowload datasheet: ERP LEDLINE ASTON 1220 HE.pdf
Notices:
1. Please Light it up for a quick check before installation.
2. Bending diameter of ERP LEDLINE ASTON 1220 WHT is 240mm, do not bend to upward or downward direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in Product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
