Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ASTON 0606 WHT-30 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ASTON 0606 WHT-30 | LED Type: | Lumileds 2835 |
|---|---|---|---|
| Beam Angle: | 50° | LED PIN Temperature: | Max.65℃ |
| Storage Temperature: | -25℃ ～ +60℃ | Life span: | >36000hrs |
| Certification: | CE, RoHS, Reach, UL | IP Grade: | IP67 |
| High Light: | IP44 Silicone Neon Strip,Indoor Neon Strip RA93 JRLite,Silicone Neon Strip WHT 3000K |
||
Product Description

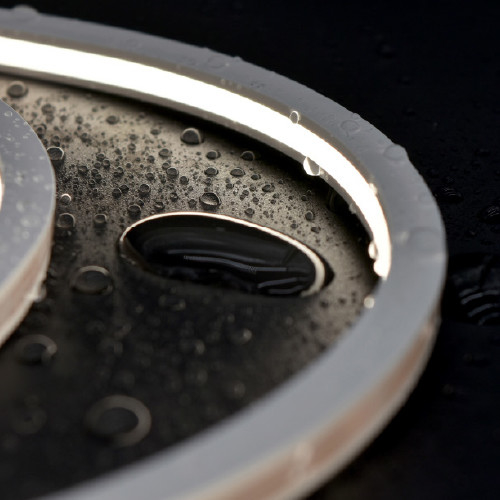

IP44 Neon strip WHT 3000K RA93 for indoor vertical bending
Description:
- LEDLINE TINI 0606, DC24V. Cross section size 6mm x 6mm/ 0.24" x 0.24" (W x H), which is verticalbending with radius of 25mm / 0.98".
- IP44&IP67 protected are optional, UV resistant, chemical resistant for indoor & outdoor solutions.Very easy to cut & reconnect on site.
- 25mm unit cut, 3 years warranty.
Quick Detail:
· Size 6mm x 6mm / 0.24" x 0.24" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 50º beam projection
· Maximum run length 5M@6W/m
· IP67 rating
· Cable entry directions: Front, side, bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >36000H
· 2 Year Warranty
Specifications:
| Tech Date | |
| Model | ASTON 0606 WHT-30 |
| LED Type | Lumileds 2835 |
| Beam Angle | 50° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >36000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 2Years |
| Max. Run Length | 5M |
| CRI | Ra93 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 3000K |
| Power(W/M) | 6W/m |
| Lumen | |
| 332lm/m@6W/m |
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 0606 WHT is 50mm, do not bend to top direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 2 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
1. Top bending, better lighting performance& higher brightness, suitable for commercial lighting, general lighting, detail lighting required exquisite
designs.
2. Ideal for KBB lighting, retail shop lighting, cabinet lighting.
3. Grand hotel, apartment, lobby hall.
4. Fits for shopping mall, flagship store, restaurant.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
