Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE TINI 0606 W40 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE TINI 0606 W40 | LED Type: | Lumileds 2835 |
|---|---|---|---|
| Beam Angle: | 120° | LED PIN Temperature: | Max.65℃ |
| Storage Temperature: | -25℃ ～ +60℃ | Life span: | >36000hrs |
| Certification: | CE, RoHS, Reach, UL | IP Grade: | IP67 |
| LED Color: | White | Color Temperature: | 4000K |
| High Light: | DC24V 6W Neon Strip,outdoor led strip IP67,6W Neon Strip JRLite |
||
Product Description

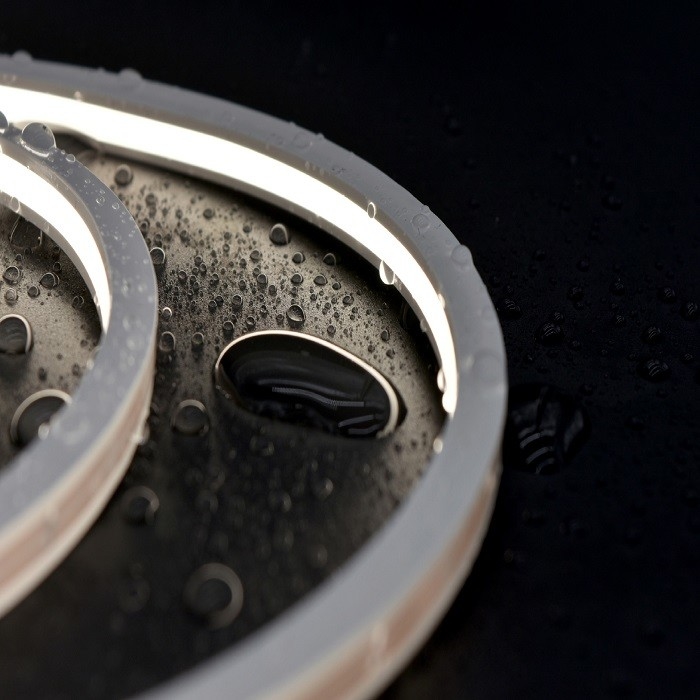

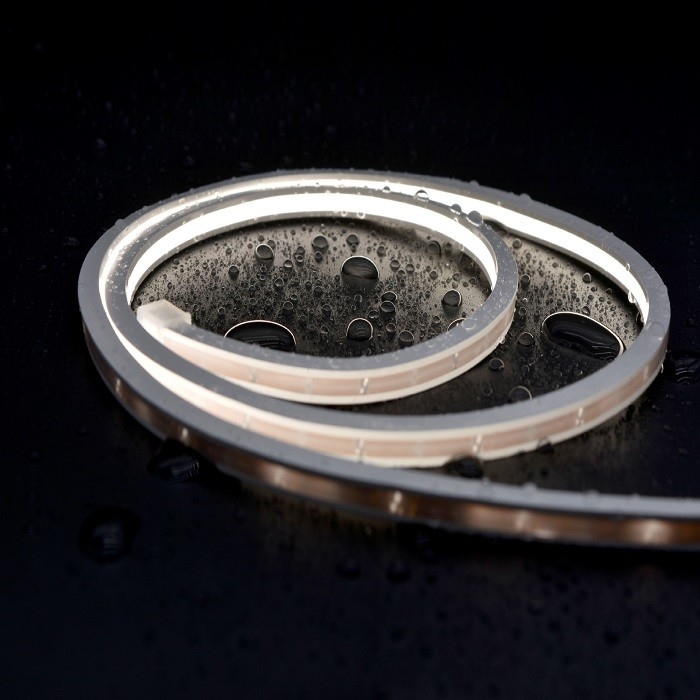

DC24V 6W Neon strip WHT 4000K 3 years warranty TOP banding
Quick Detail:
· LEDLINE TINI 0606, DC24V
· 6mm x 6mm/ 0.24" x 0.24" (W x H),
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 5M
· Max production Length: 20m/reel
· -IP44&IP67 protected are optional
· Cable entry directions: Front/Side/Bottom
· CE, RoHS, Reach, UL compliant
· Life Span >36000H
· 3 Year Warranty
Specifications:
| Tech Date | |
| Model | LEDLINE TINI 0606 W40 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >36000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 3 Years |
| Max. Run Length | 5M |
| CRI | Ra90 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 4000K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 6W/M |
| LM/M | 372lm |
| Efficiency(LM/W) | 62lm/w |
Download datasheet: LEDLINE TINI 0606 Datasheet.pdf
Notices:
1.Max production length 20meters per reel, and the standard packaging is 5meters per reel.
2.Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.
3.It is no IK-Rated, please don't walk on it without protection.
Applications:
LEDLINE TINI 0606 W40 is suitable for both indoor and outdoor applications such as facade lighting, contour lighting, landscape lighting, retail shops, gallery, show-booth and exhibition room. Ideal for architectural lighting, coves, object integration.Desired light effect in bar counter, restaurant, hotel and task lighting applications.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
