50mm Unit Cut Silicone Neon Strip WHT 4000K 1615 Vertical Bending

Product Description

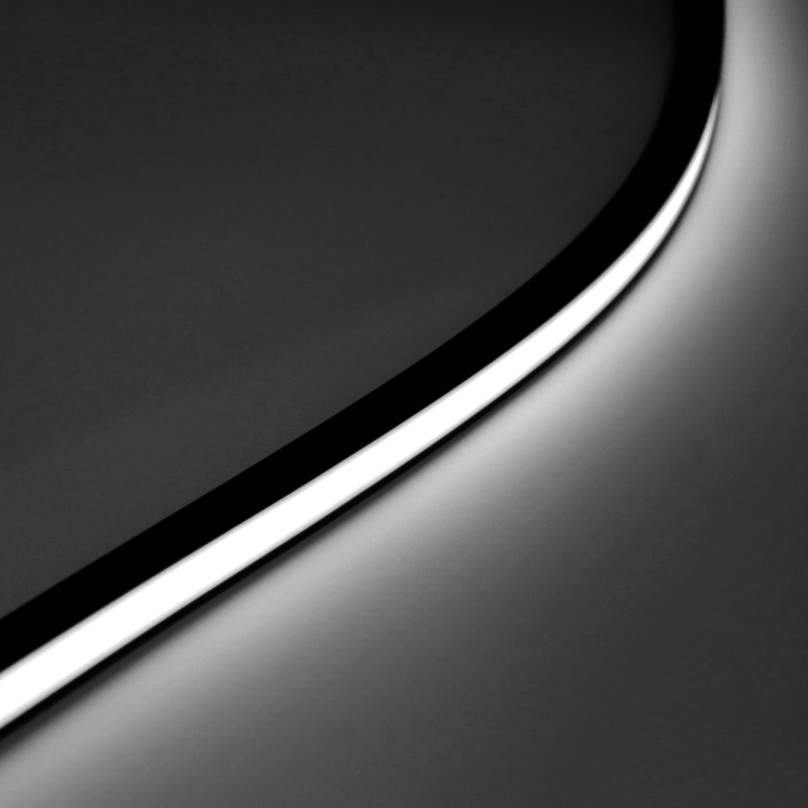

50mm unit cut WHT 4000K 1615 vertical bending neon light



Description:

-- Unique black silicone body design makes it easier to install in different environment.

- Black noble, luxurious low-key, unparalleled appearance.

- 50mm cutting unit, free to customize the length



Quick Detail:



· Voltage: DC24V

· Neon Size: 16mm*15mm

· Bending Direction: Top bending (vertical bending)

· Cutting Interval: 50mm

· Max Wattage: 15W/m

· CRI: Ra93

· CCT:4000K

· Max Run Length: 5m

· IP Rating: IP67

· Endcap Option: Silicone

· CE, RoHS, TUV, UL compliant

· 5 Year Warranty







Specifications:



Model	ASTON NEO 1615 4000K
SMD Type	Lumileds 2835
LEDs/m	120LEDs/m
LED Power	15W/m
LED Color	4000K
Input Voltage	DC24V
Ra	>93
Neon Dimension	16mm*15mm
Unit cut	50mm
IP Grade	IP67
Storage Temperature	-25℃ /-13℉min, 60℃ /140℉max
Life Span	>54000H
Certification	CE, RoHS, TUV,REACH, UL
Warranty	5 years
Efficiency(LM/W)	29.6LM/M





Notices:



1.Max production length 5meters per reel, and the standard packaging is 5meters per reel.

2.Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.

3.Patented easy endcap achieves mechanical IP67 waterproof without any glue.

4. Please light it up for a quick check before installation. Bending diameter of LEDLINE NEO 1615 is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.

5. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.

6. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.





Applications:



1. Facade lighting, contour lighting and landscape lighting.

2. Solutions for retail shops.

3. Signage and illuminated advertising.

4. Ideal for architectural lighting, coves, object integration.





FAQ:



Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 2-4 weeks after payment.



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.



Q8: How to deal with the faulty?

A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.

This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
