Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE ASTON 0612 RGB |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE ASTON 0612 RGB | Efficacy(lm/W): | 14.8 |
|---|---|---|---|
| Beam Angle: | 120° | Life span: | >30000hrs |
| Certification: | CE, RoHS, Reach, UL | IP Grade: | IP67 |
| Warranty: | 3 Years | Max. Run Length: | 5M |
| Max. Watt: | 10W/M(RGB) | Unit Cut: | 50mm |
| High Light: | Silicone LED Neon Strips,6MM Width LED Neon Strips,RGB Silicone Neon LED Strip |
||
Product Description

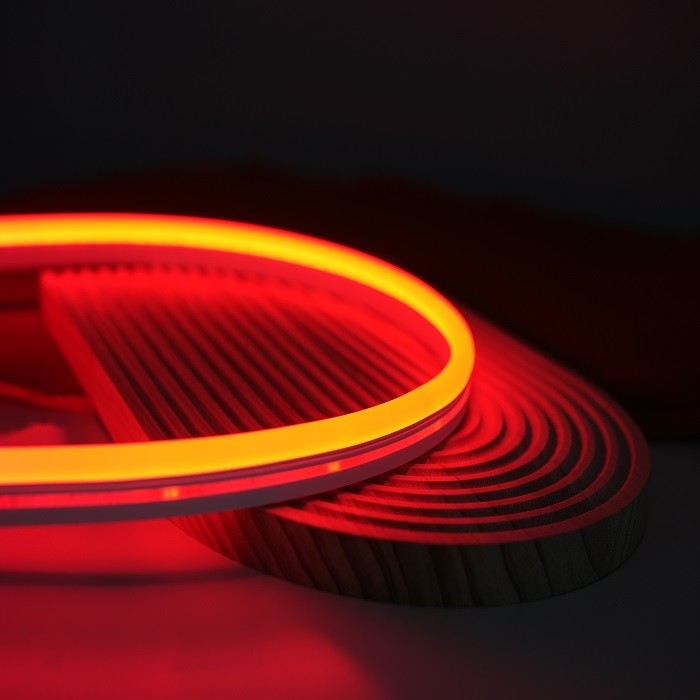

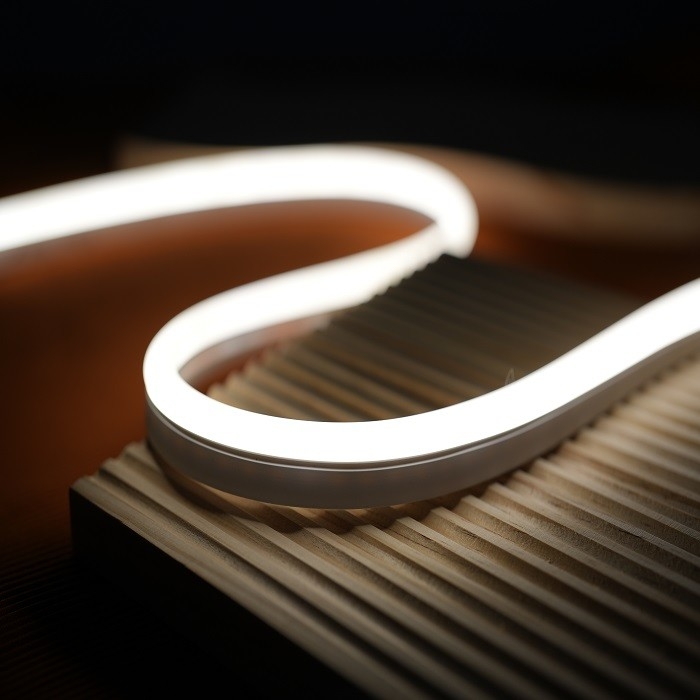

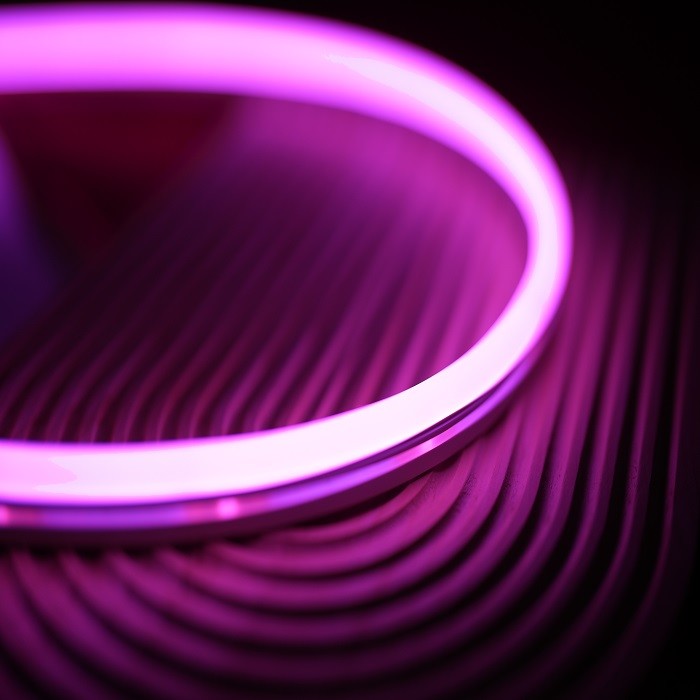

IP67 RGB DC24V Silicone LED Neon Strips 6MM Width For indoor&outdoor solutions
Quick Detail:
· Size 6mm x 12mm / 0.24" x 0.47" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 5M
· IP67 rating
· Cable entry directions: Front, side, bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >30000H
· 3 Year Warranty
Specifications:
| Tech Date | |
| Model |
LEDLINE ASTON 0612 RGB
|
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >30000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 3 Years |
| Max. Run Length | 5M |
| Unit Cut | 50mm |
|
Power(W/m W/ft)
|
10/3.1
|
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
|
Efficacy(lm/W)
|
14.8 |
| Power(W/M) | 10W/M |
| Lumen |
148LM/M(RGB)
|
Download Datasheet : LEDLINE ASTON 0612 RGB Datasheet.pdf
Notices:
Applications:
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. What are your main products?
A:Our company dedicated in LED Strips for more than 10 years. Our main products are led strip, cob(CHIP ON BOARD) strip, neon flex and rigid bar.
Q2. Is it possible to visit the factory?
A: Of course, we welcome customers to experience our production equipment and standard production environment
Q3. Where is your factory located?
A:Our factory is located in Baoan District,Shenzhen, Guangdong Province, China.
Q4. Why use Silicone material?
A: 1.UV resistant, will not yellow in time.
2.Highly flexible, stable and
durable; soft to bend, fast recovery after bending.
3.For the installation environment, it can endure in -25℃ to 60℃ temperature.
4.Non sticky, easy-to-clean, no smell and no chemical reaction with detergent.
5.Premium look and feel.
