Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | ERP LEDLINE ASTON 1615 HE-30 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P, T/T，Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| SMD Type: | SMD2835 | Max.run Length: | 5M |
|---|---|---|---|
| IP Grade: | IP67 | Power(W/M): | 9.6W/M |
| LEDs/M: | 160 | LED Color: | Warm White |
| CCT: | 2700K | Size: | 16mm*15mm（0.63" X 0.59"） |
| High Light: | 160pcs LED Neon Strip,2700K LED Neon Strip,SMD2835 Silicone LED Strip |
||
Product Description

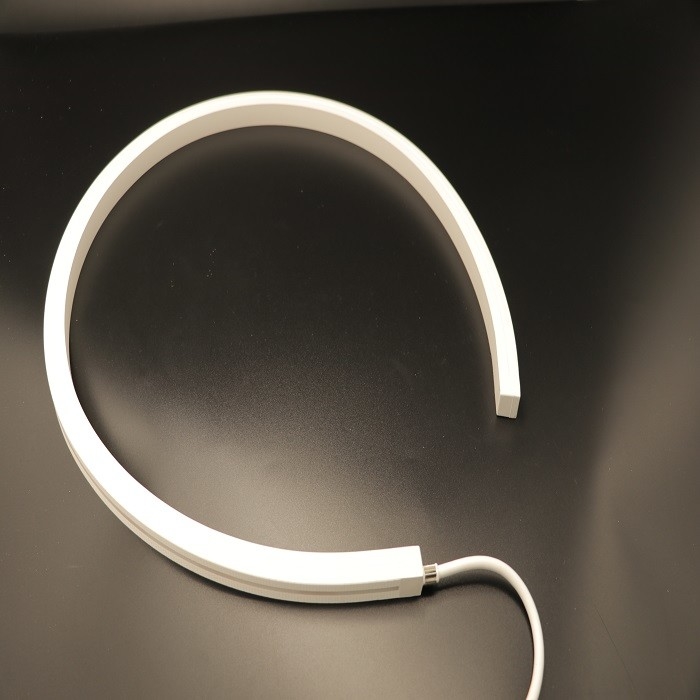

Flexible 160pcs LED Neon Strip SMD2835 2700K Warm White Color
ERP 24VDC Flexible Silicone LED Strip 160LEDs 2700K Warm White IP67 16mm X 15mm
Quick Detail:
· ERP Qualified silicone neon
· ERP classification: F
· Size 16x15mm(WxH) / 0.63" x 0.59"(WxH)
· UV-resistance(no yellowish)
· CRI>80

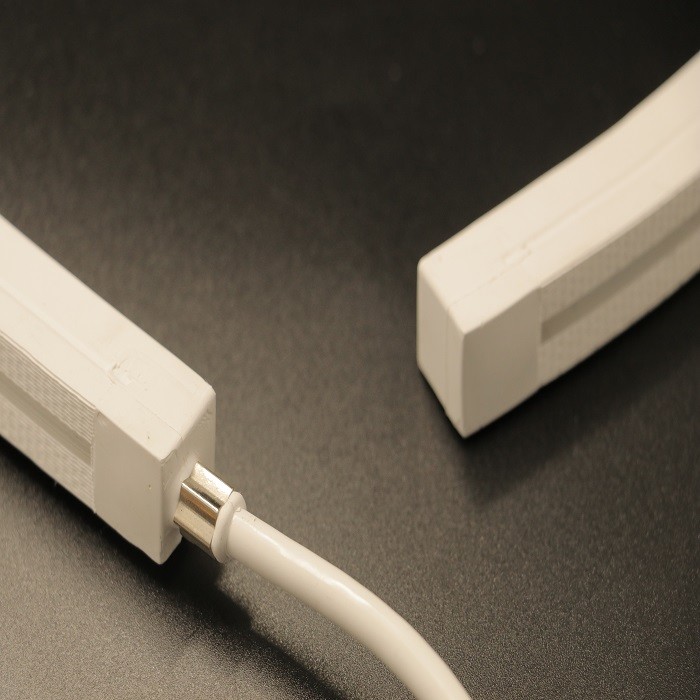

· Cable entry directions: Front/Side/Bottom cable entry
· Endcap options: Integrated Endcap/DIY Endcap/Glued Endcap
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Model | ERP LEDLINE ASTON 1615 HE-27 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra80 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Working Energy Consumption(kWh/1000h) 0.5m | 4.8 |
| Lumen Maintenance Factor | 0.96 |
| Color Temperature | 3000K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 9.6W/M |
| Power(W/0.5M) | 4.8W/M |
| LM/0.5M | 530lm |
| Efficiency(LM/W) | 110lm/w |
| ERP classification | F |
Download datasheet: ERP LEDLINE ASTON 1615 HE.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of ERP LEDLINE ASTON 1615 WHT is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
ERP LEDLINE ASTON 1615 HE-30 is suitable for both indoor and outdoor applications such as facade lighting, contour lighting, landscape lighting, retail shops, gallery, show-booth and exhibition room. Ideal for architectural lighting, coves, object integration.Desired light effect in bar counter, restaurant, hotel and task lighting applications.
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
