Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE EVIS WHT -5000K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE EVIS WHT -5000K | Warranty: | 5 Years |
|---|---|---|---|
| LED Color: | 5000K | Neon Dimension: | 16mm*15mm |
| Unit Cut: | 50mm | IP Grade: | IP67 |
| Storage Temperature: | -25℃ /-13℉min, 60℃ /140℉max | Input Voltage: | DC24V |
| High Light: | 5000K CRI90 led neon flex outdoor,neon flexible light 16mm X 15mm,5000K led neon flex outdoor |
||
Product Description

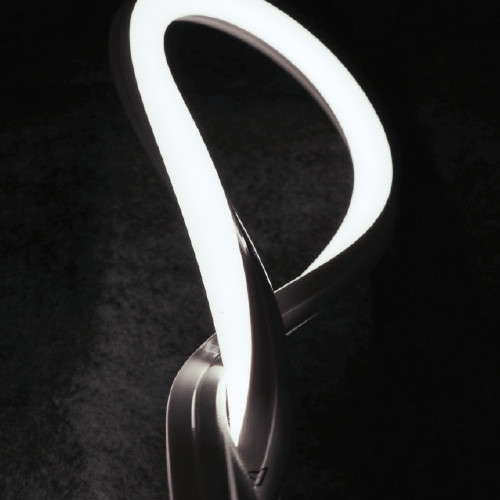

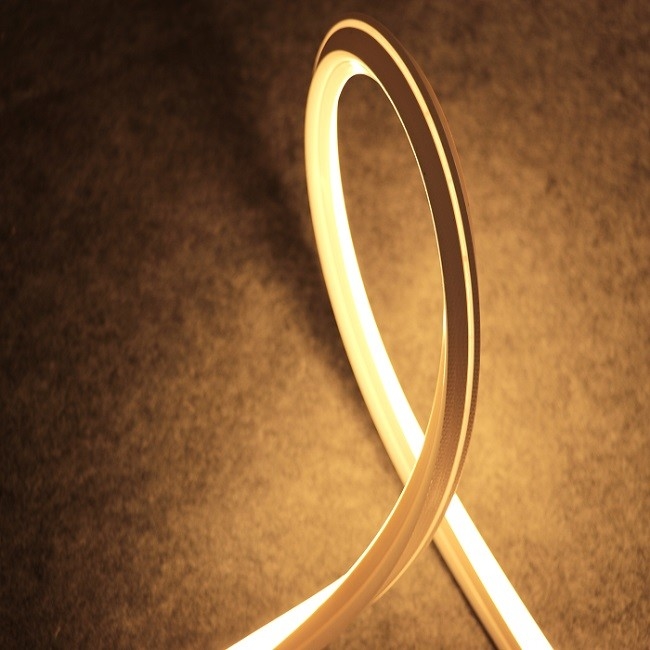

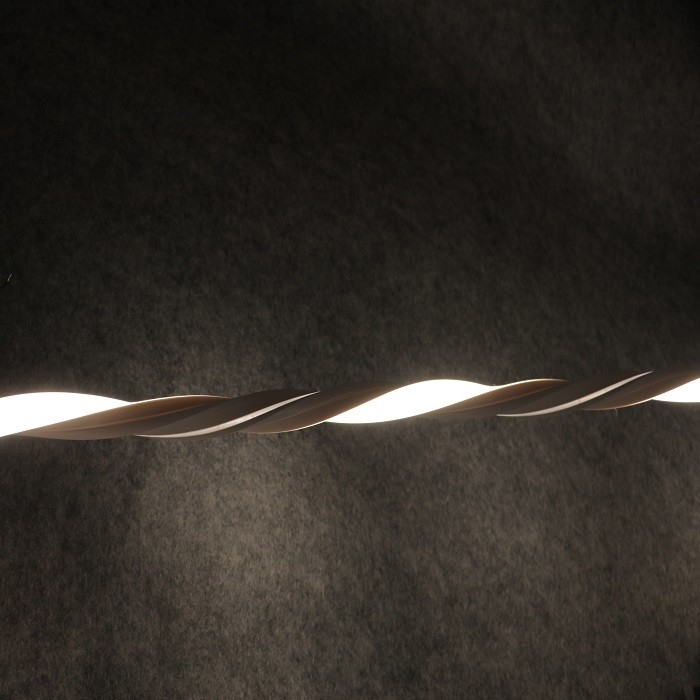

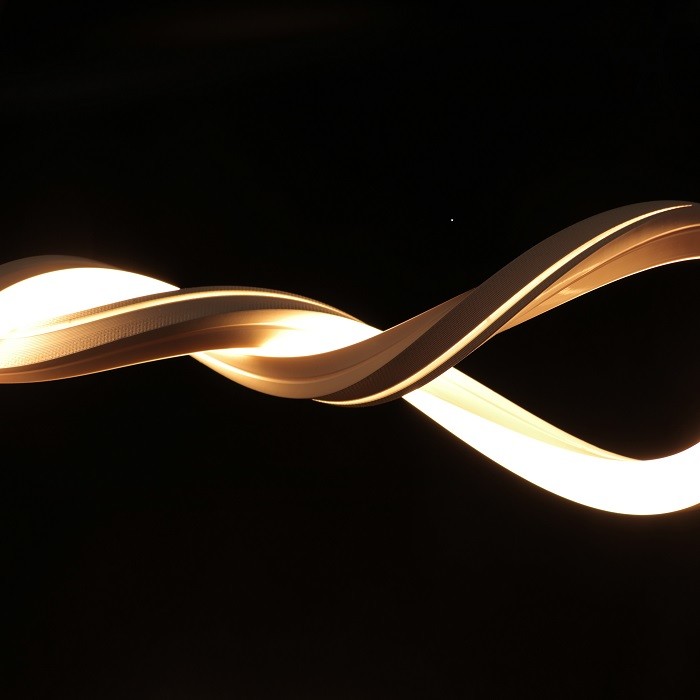

DC24V Vertical Bending & Horizontal Bending Flexible Led Neon Strip Twist Neon Flex 5000K
Description:
- Flexible neon led strip, twistable, top and side bending led rope
- Ideal for Court lighting, signature lighting, Urban lighting.
- Easy to cut & reconnect on site
- Suitable for hotel, showing room, corridors, apartment, plaza, shopping mall.
Quick Detail:
· Voltage: DC24V
· Neon Size: 16mm*15mm
· Bending Direction: 3D Twisted Bending
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CRI: Ra93
· CCT: 5500K
· Max Run Lenghth: 5m
· IP Rating: IP67
· Endcap Option: Injected endcap, Silicone endcap
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Specifications:
| Model | LEDLINE EVIS WHT -5000K |
| SMD Type | 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 10w/m |
| LED Color | 5000K |
| Input Voltage | DC24V |
| Ra | 93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Beam Angle | 120° |
Download datasheet: EVIS.pdf
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE EVIS WHT is 200mm,do not bend too sharp. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
FAQ:
Q1. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
