Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | LEDLINE ASTON 0817 WHT-27 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| IP Rating: | IP67 | PIN Temperature: | Max. 65℃ /149o F |
|---|---|---|---|
| Ra: | >90 | Warranty: | 5 Years |
| Item Type: | Neon Lights | Light Source: | LED |
| Emitting Color: | Warm White | Working Lifetime(hour): | >54000H |
| Size: | 8*17mm | ||
| High Light: | Ra90 LED Neon Strip,2700K LED Neon Strip,IP67 Silicone Neon Light |
||
Product Description

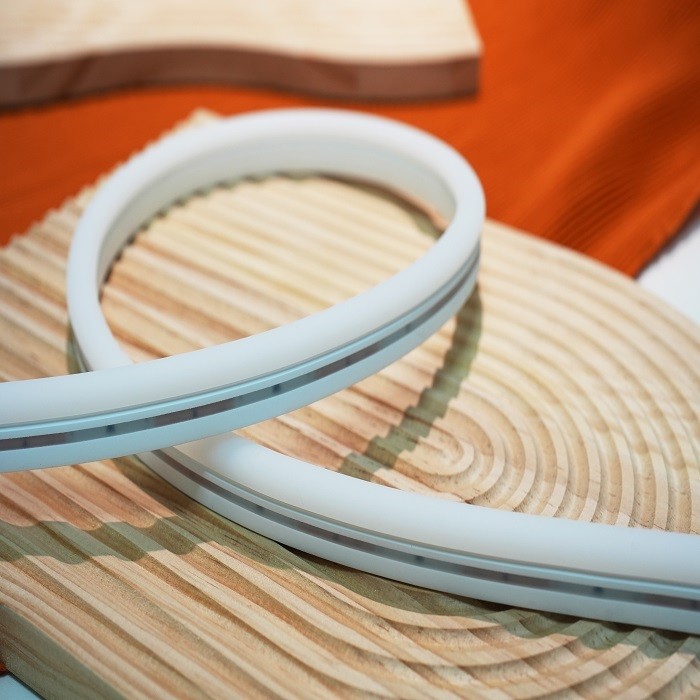

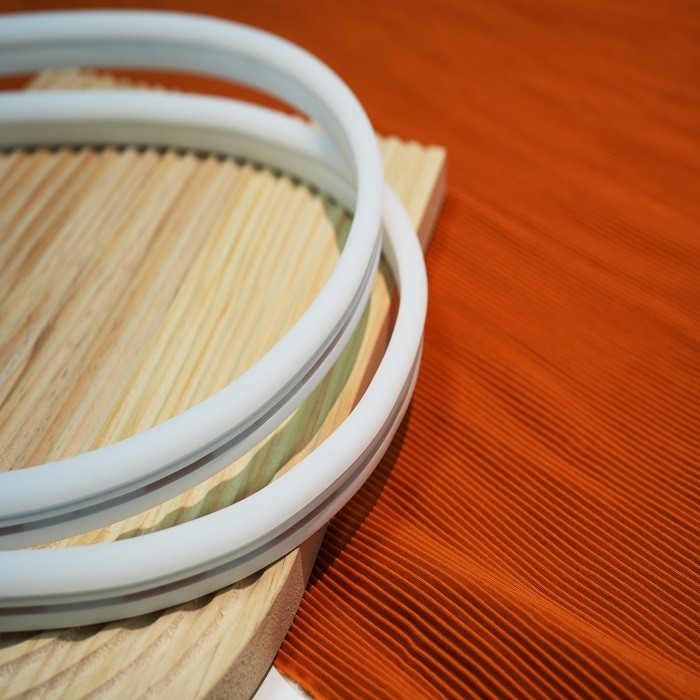

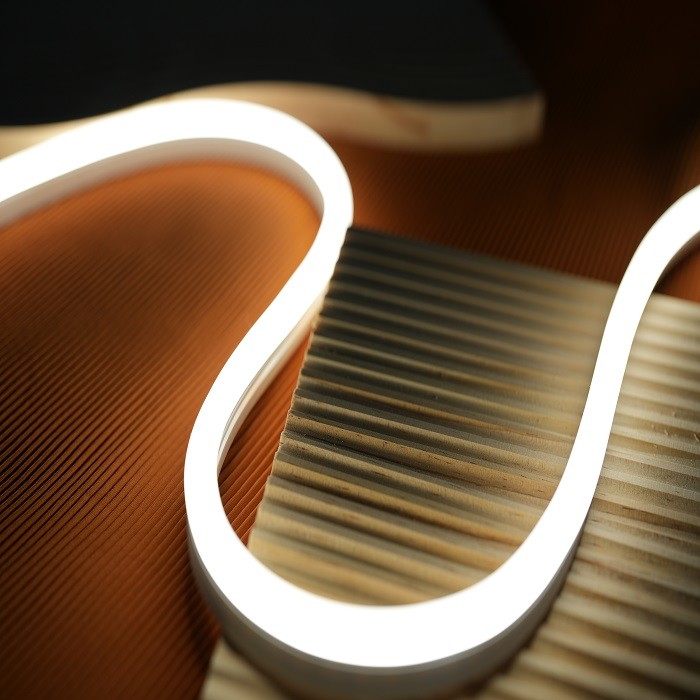

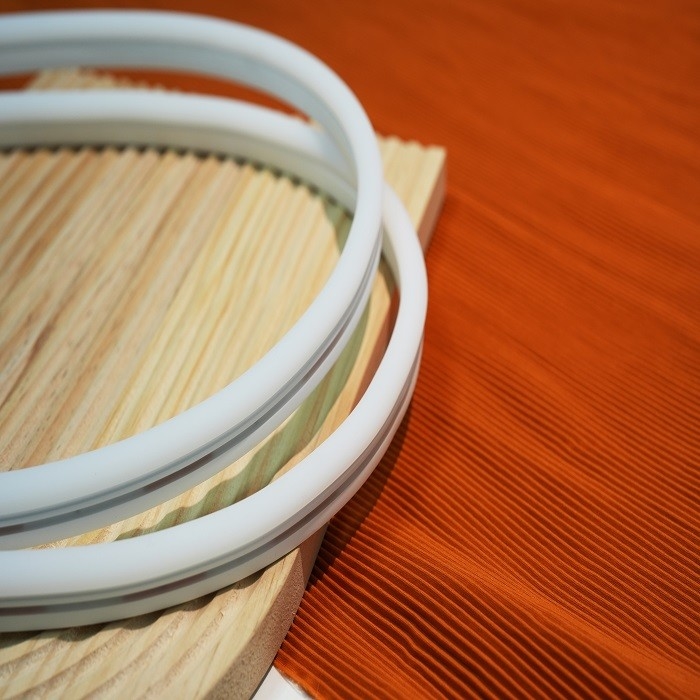

DC24V 2700K Ra90 Silicone LED Neon Strip With 5 Years Warranty
DC24V IP67 2700K Silicone Neon Light WHT 8mm X 17mm 2-Step Ra90
Description:
- LEDLINE ASTON 0817 WHT, DC24V. Cross section size 8mm x 17mm/ 0.31" x 0.69" (W x H), which is horizontal bending with radius of 50mm / 1.97".
- IP67 protected, UV resistant, chemical resistant
- DIY connectors for indoor & outdoor solutions. Very easy to cut & reconnect on site.
Quick Detail:
· Voltage: DC24V
· Neon Size: 8mm*17mm
· Bending Direction: Side bending (horizontal bending)
· Unit Cut: 50mm
· Max Wattage: 10W/m
· CRI: Ra90
· CCT:2700K/3000K/3500K/4000L/5300K
· Max Run Length: 14m
· IP Rating: IP67
· Endcap Option: Injection, Silicone, Mechanical
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
| Model | ASTON 0817 WHT |
| SMD Type | Lumileds 2835R |
| LEDs/m | 120LEDs/m |
| LED Power | 10W/m |
| LED Color | 3000K |
| Input Voltage | DC24V |
| Ra | >90 |
| Neon Dimension | 8mm*17mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 310LM/M |
Whole set assessories:
Download datasheet:LEDLINE ASTON 0817 WHT.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Max production length 30meters per reel, and the standard packaging is 10meters per reel.
2. Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.
3. Patented easy endcap achieves mechanical IP67 waterproof without any glue.
4. Please light it up for a quick check before installation. Bending diameter of ASTON 0817 WHT is 100mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
5. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor Underwater IP68 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
