Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | LEDLINE ASTON 0817 RGB |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Item Type: | Neon Lights | Ip Rating: | IP67 |
|---|---|---|---|
| Emitting Color: | RGB | Input Voltage(v): | DC24V |
| Lamp Power: | 10W/M | Max. Run Length: | 5M |
| Place Of Production: | Shen Zhen | ||
| High Light: | 5m Neon LED Novelty Lighting,DC24V LED Novelty Lighting,IP67 Neon Novelty Lights |
||
Product Description

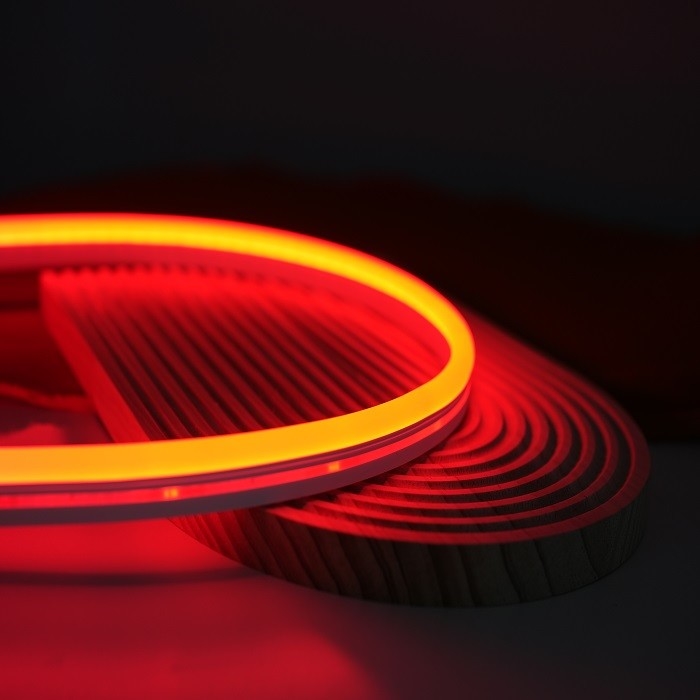

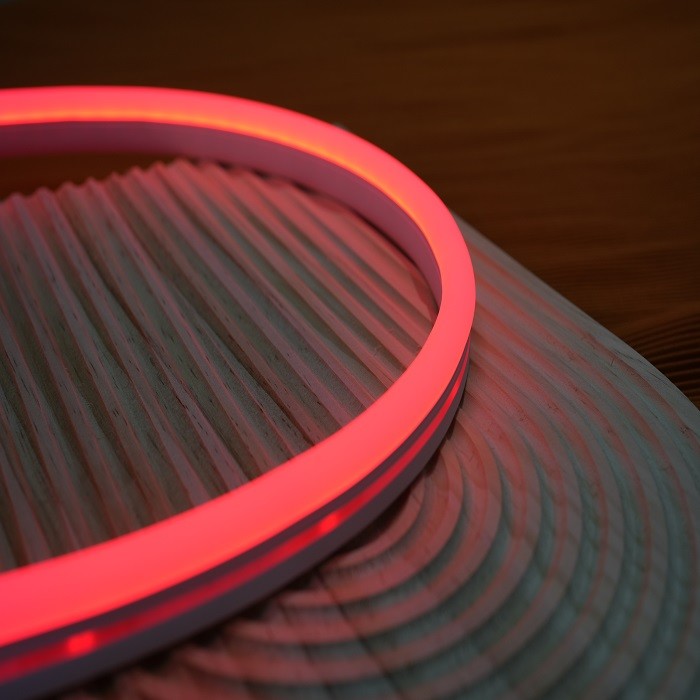

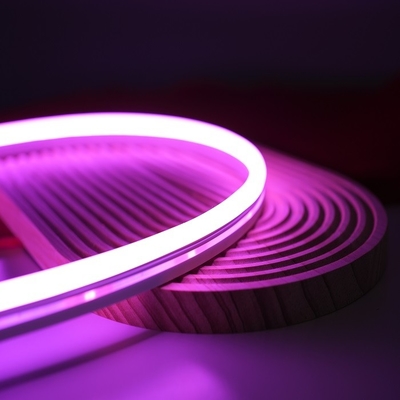

5m Neon LED Novelty Lighting DIY Connectors For Indoor Outdoor
DC24V IP67 Silicone LED Neon Light WHT 5W/10W For Outdoor Lighting
Description:
- LEDLINE ASTON 0817 RGB, DC24V. Cross section size 8mm x 17mm/ 0.31" x 0.69" (W x H), which is180° Emitting with radius of 50mm / 1.97".
- IP67 protected, UV resistant, chemical resistant
- DIY connectors for indoor & outdoor solutions. Very easy to cut & reconnect on site.
Quick Detail:
· Voltage: DC24V
· Neon Size: 8mm*17mm
· 180° Emitting
· Cutting Interval: 62.5mm
· Max Wattage: 10W/m
· Max Run Length: 5m
· IP Rating: IP67
· Front Cable Entry
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
| Model | ASTON 0817 RGB |
| SMD Type | Lumileds 2835R |
| LEDs/m | 120LEDs/m |
| LED Power | 10W/m |
| LED Color | RGB |
| Input Voltage | DC24V |
Max. Run Length | 5M |
| Neon Dimension | 10mm*mm |
| Unit cut | 62.5mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >30000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 14.5LM/M |
Whole set accessories:
Download datasheet:LEDLINE ASTON 0817 RGB.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Max production length 30 meters per reel, and the standard packaging is 10 meters per reel.
2. Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.
3. Patented easy endcap achieves mechanical IP67 waterproof without any glue.
4. Please light it up for a quick check before installation. The bending diameter of ASTON 0817 WHT is 100mm, do not bend to the side direction or bend too sharp, or twist. If bend wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
5. During installation, please make sure there are at least two workers cooperating together and strictly follow the instruction manuals.
