Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE ASTON 1220 NEO-27 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE ASTON 1220 NEO-27 | LED Type: | Lumileds 2835 |
|---|---|---|---|
| LED PIN Temperature: | Max.65℃ | Storage Temperature: | -25℃ ～ +60℃ |
| Life span: | >54000hrs | Bending Direction: | Horizontal Bend/Side Bend |
| Material: | Silicone Neons | Cut: | 50mm |
| High Light: | Indoor Outdoor LED Neon Strip,2835 LED Neon Strip,Warm White 2835 LED Strip |
||
Product Description

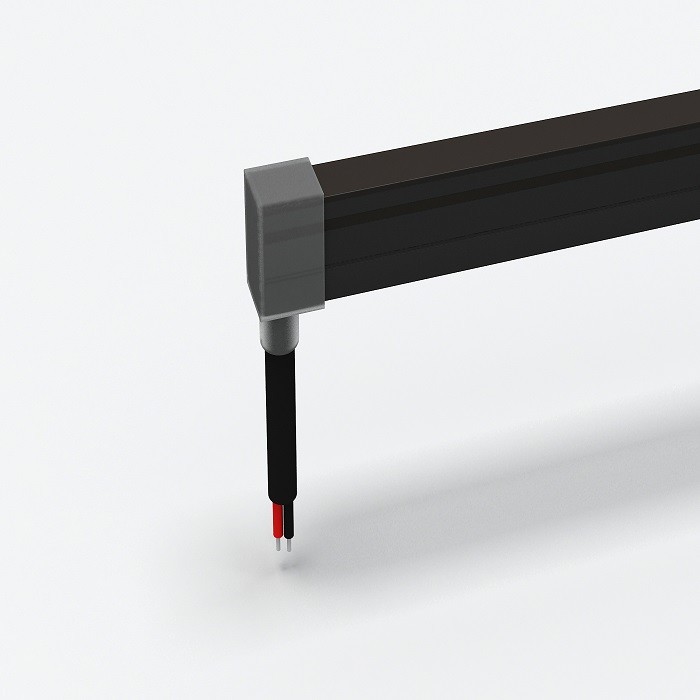

Indoor Outdoor LED Neon Strip 2835 LED Strip Black Neon CRI90 IP67 5w/10w/15w
Description:
- LEDLINE NEO 1220, DC24V.

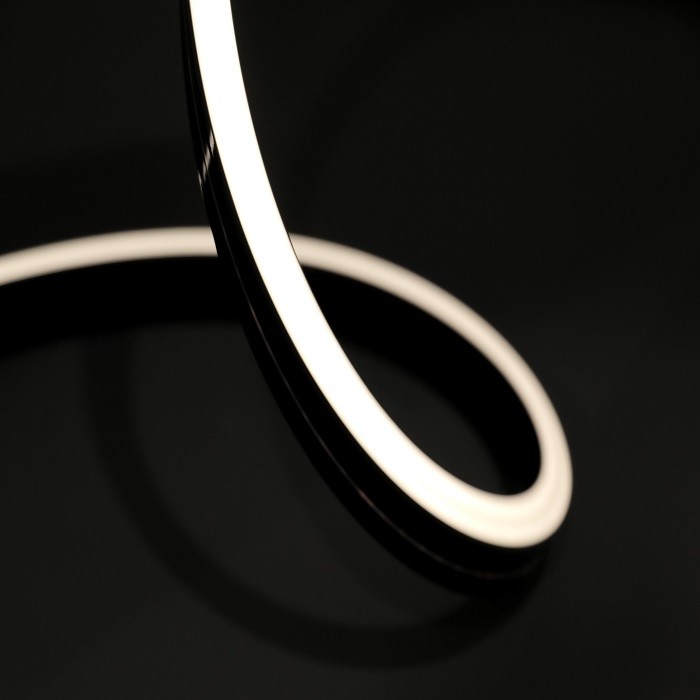

Cross section size 12mm x20mm/ 0.47" x 0.79" (W x H), which is horizontal bending with radius of 120mm / 4.72".

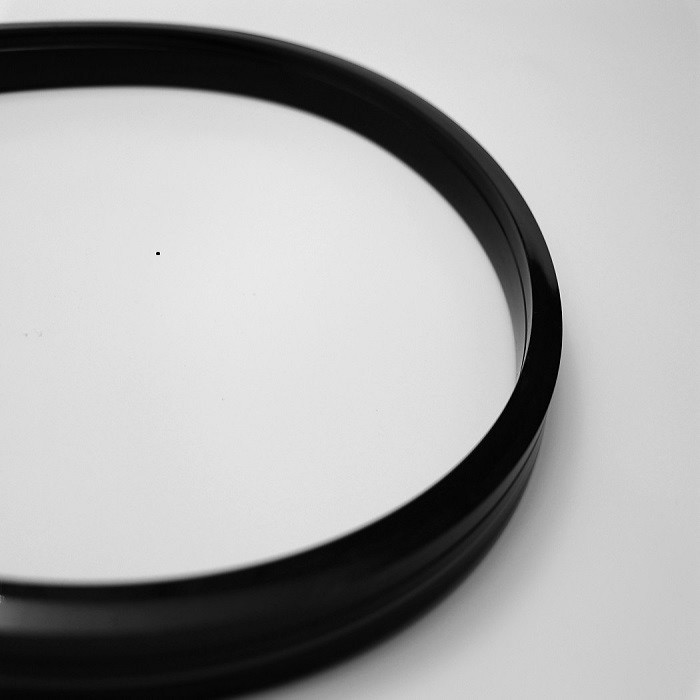

-- Unique black silicone body design makes it easier to install in different environment.
Quick Detail:
· Size 12x20mm(WxH) / 0.47" x 0.79"(WxH)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 5M
· IP67 rating

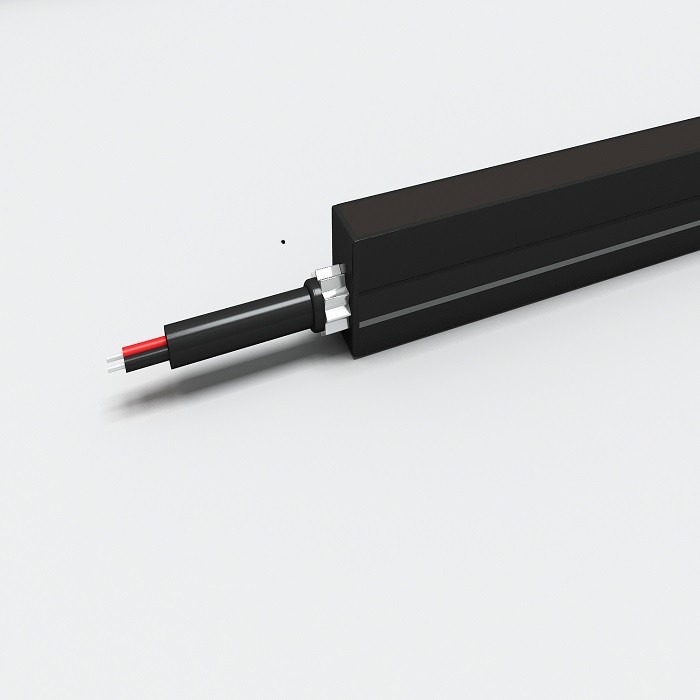

· Cable entry directions: Front/Side/Bottom cable entry
Specifications:
| Model | LEDLINE ASTON 1220 NEO-27 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra＞90 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K |
| Power(W/M) | 5W/M,10W/M,15W/M |
Download datasheet: LEDLINE NEO 1220.pdf
Applications:
- Facade lighting, contour lighting and landscape lighting.
- Solutions for retail shops, shopping mall,hotel, restaurant, handrails lighting.
- Signage and illuminated advertising.
- Ideal for architectural lighting, coves, object integration.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
