Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE TINI 0408 W35 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE TINI 0408 W35 | LED Type: | Lumileds 2835 |
|---|---|---|---|
| Beam Angle: | 120° | LED PIN Temperature: | Max.65℃ |
| Storage Temperature: | -25℃ ～ +60℃ | Life span: | >36000hrs |
| IP Grade: | IP67 | Color Temperature: | 3500K |
| High Light: | Ribbon Waterproof Neon Lights,neon flex strip light RA90,Waterproof Neon Lights 2835LED |
||
Product Description

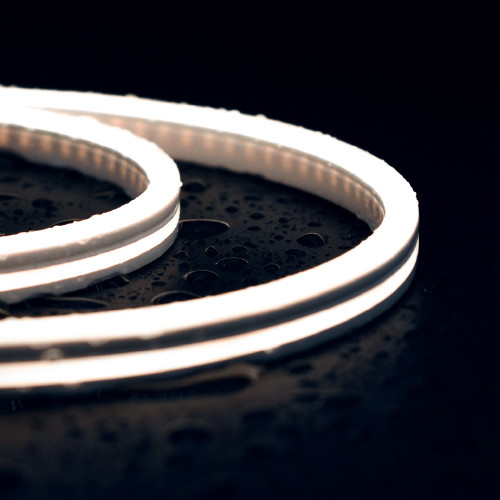

Ribbon neon light 2835LED IP44 silicone flex DC24V 3500K SDCM3 RA90 5years warranty for indoors
Description:
- Slim size easy to to fit in tiny gap installation
- IP44&IP67 protected are optional, UV resistant, chemical resistant for indoor & outdoor solutions.
Quick Detail:
· LEDLINE UNI 0408, DC24V.
· Size 4mm x 8mm / 0.16" x 0.31" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 5M
· Max production Length: 10m/reel
· -IP44&IP67 protected are optional
· Cable entry directions: Front/Side/Bottom
· CE, RoHS, Reach, UL compliant
· Life Span >36000H
· 3 Year Warranty
Specifications:
| Tech Date | |
| Model | LEDLINE TINI 0408 W35 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >36000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 3 Years |
| Max. Run Length | 5M |
| CRI | Ra95 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 3500K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 6W/M |
| LM/M | 235lm |
| Efficiency(LM/W) | 39lm/w |
Notices:
1. Max production length 10meters per reel, and the standard packaging is 5meters per reel also.
2. Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.
3. It is no IK-Rated, please don't walk on it without protection
Applications:
LEDLINE TINI 0408 W35 is suitable for both indoor and outdoor applications such as facade lighting, contour lighting, landscape lighting, retail shops, gallery, show-booth and exhibition room. Ideal for architectural lighting, coves, object integration.Desired light effect in bar counter, restaurant, hotel and task lighting applications.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
