Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | TOP 1615 WHT 3000K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE FLEX TOP 1615 WHT 3000K | Unit Cut: | 41.67mm |
|---|---|---|---|
| Life Span: | >54000H | Storage Temperature: | -25℃ /-13℉min, 60℃ /140℉max |
| Warranty: | 5 Years | SMD Type: | Lumileds 2835 |
| LED Power: | 5/10/15W/M | LEDs/m: | 120LEDs/m |
| High Light: | Waterproof Neon Lights CRI80,Waterproof LED strip 3000K,Waterproof Neon Lights DC 24V |
||
Product Description

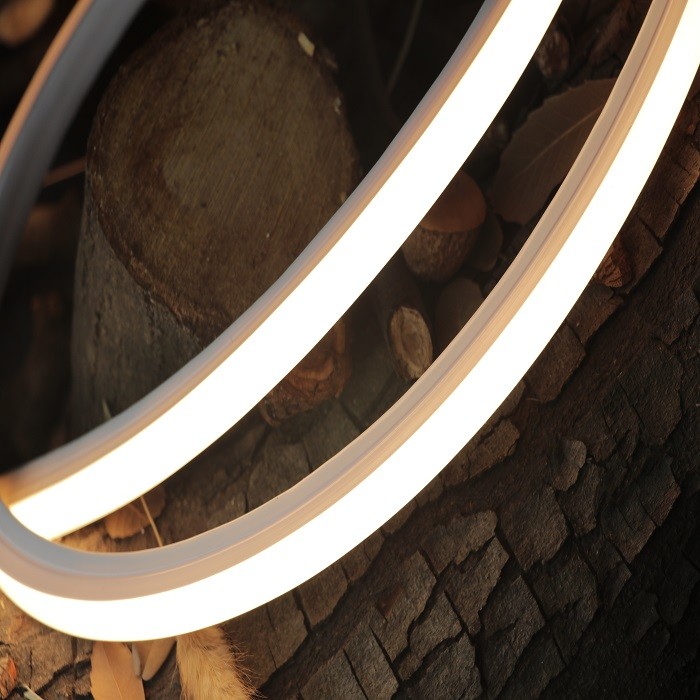

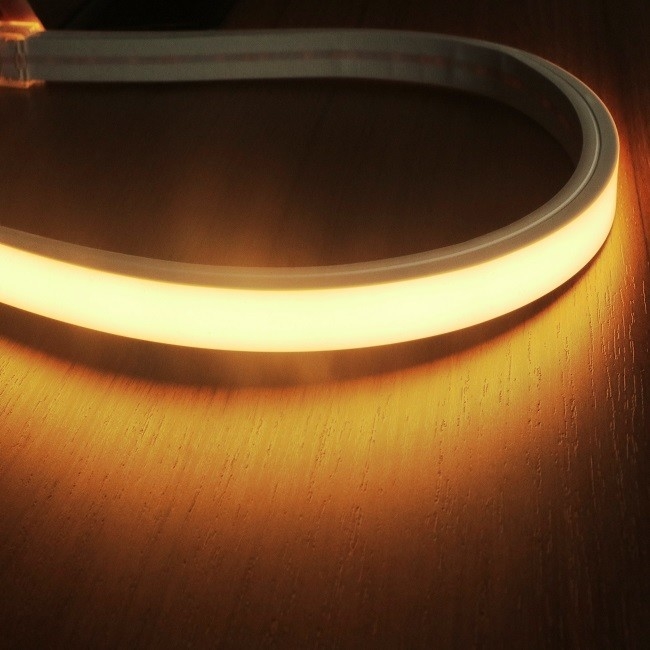

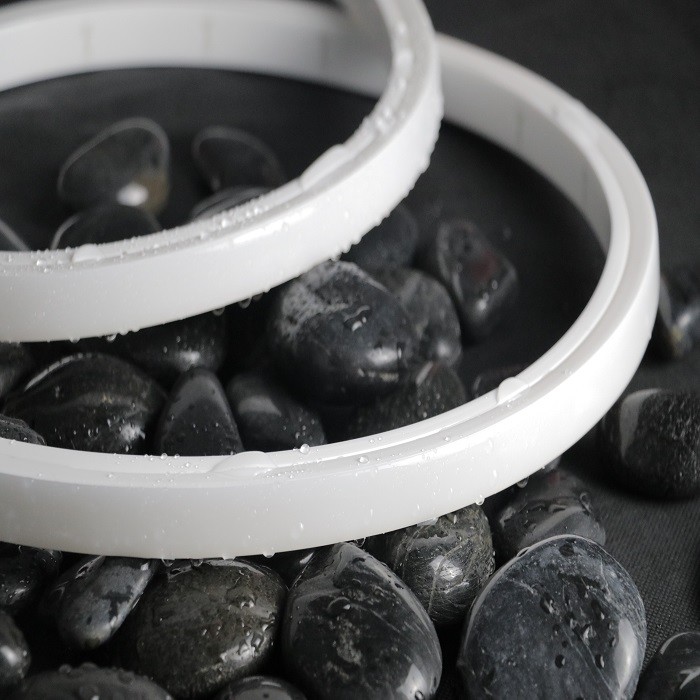

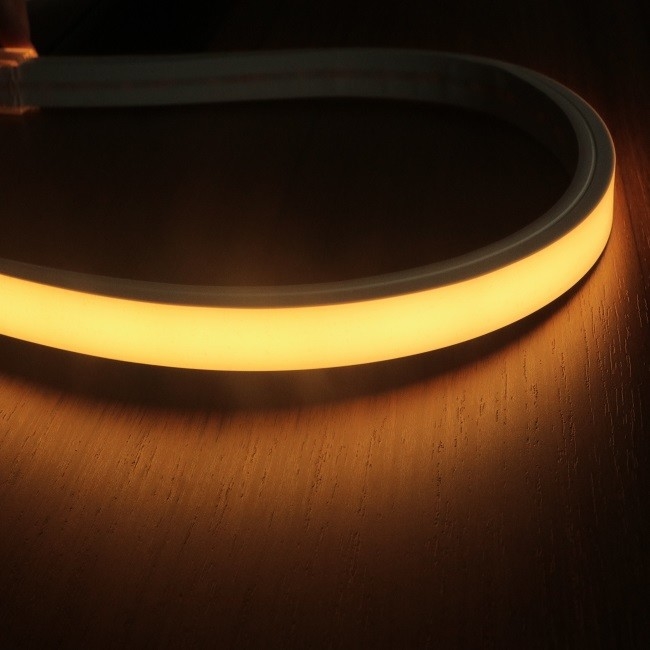

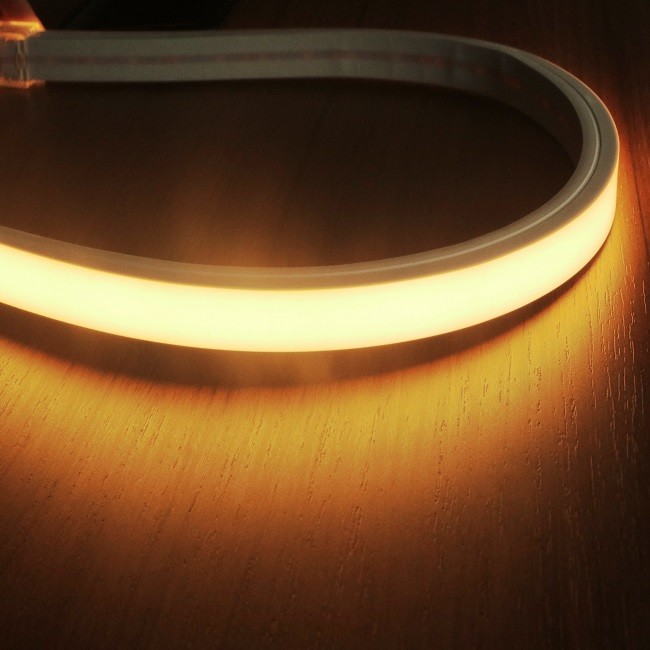

16MM*15MM Waterproof LED strip vertical bending CRI93 DC24V 3000K IP68
Main Feature:
One bin only
high waterproof grade
UV resistance
Quick Detail:
· Voltage: DC24V
· Neon Size: 16mm*15mm
· Bending Direction: Top bending (verticall bending)
· Cutting Interval: 41.67mm
· Max Wattage: 15W/m
· CRI: Ra93
· CCT:3000K
· Max Run Length: 14m
· IP Rating: IP68
· Endcap Option: Injection
· CE, RoHS, TUV, UL compliant
· 3 Year Warranty
Description:
- Thanks to full Polyurethane coating, it is IP68 protected, UV resistant, solvents resistant and saltwater temporary immersion.
- 2-Step MacAdam bin and dot free lighting effect guarantee the most excellent performance for indoor & outdoor applications
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | TOP 1615 WHT 3000K |
| SMD Type | Lumileds 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 15W/m |
| LED Color | 3000K |
| Input Voltage | DC24V |
| CRI | Ra93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP68 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 3 years |
| Efficiency(LM/W) | 46/58/50LM/M |
Download datasheet: LEDLINE ASTON 1615.pdf
Notices:
- When ambient temperature reaches 50℃,the power is suggested to be 5W/M.
- The product delivery length is 5M/reel maximum. Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the production process and the electrical components, values for light output and electrical power can vary up to 10%.
- The given color temperature is the strip (after coating) color temperature.
- The product can be cut ONCE only and finish with end cap & glue, then IP rating drops to IP68.
Applications:
1. IP68 protection with full Polyurethane encapsulation. With PC profile, perfect for underwater applications like swimmingpools.
2. Ideal for resort, seaside park and luxurious yachts decoration.
3. Professional solution for architectural & facade lighting
FAQ:
Q1. What about the lead time?
A: 2-4 weeks after payment.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
