Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE FLEX TOP RGBW |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE FLEX TOP RGBW | Max. Run Length: | 5M |
|---|---|---|---|
| LED Color: | RGBW | Input Voltage: | DC24V (23.5Vmin, 24.5Vmax) |
| Neon Diameter: | 16mm*15mm | LED Power: | 15W/m |
| Life Span: | >54000H | Unit Cut: | 71.43mm |
| High Light: | PU Dot Free LED Strip,15W/M Dot Free LED Strip,UV Resistant Dot Free LED Strip |
||
Product Description

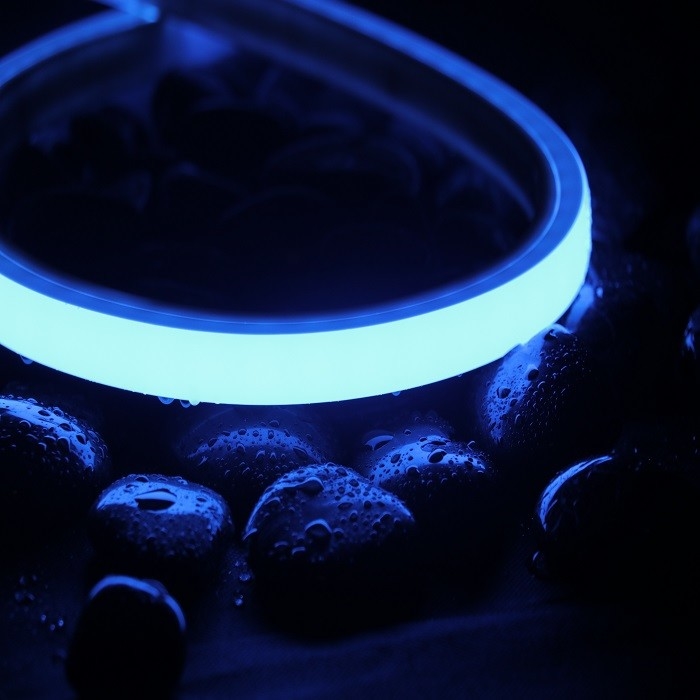

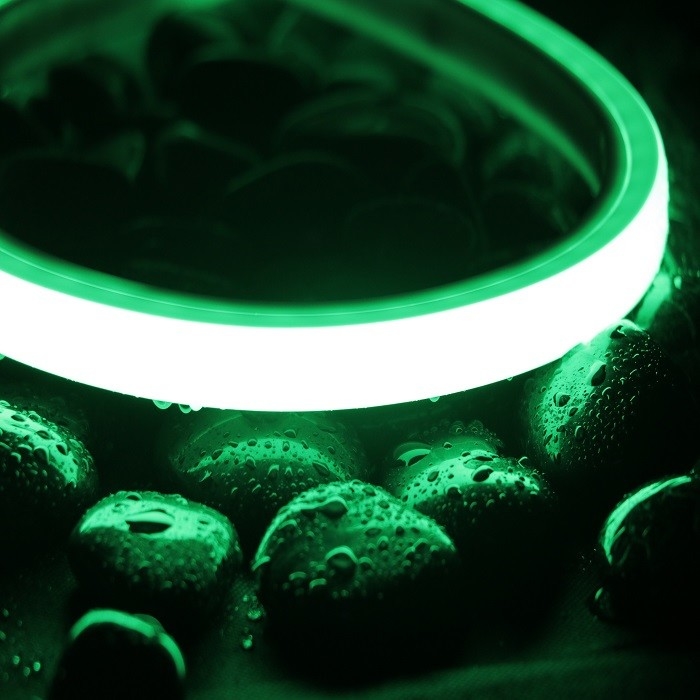

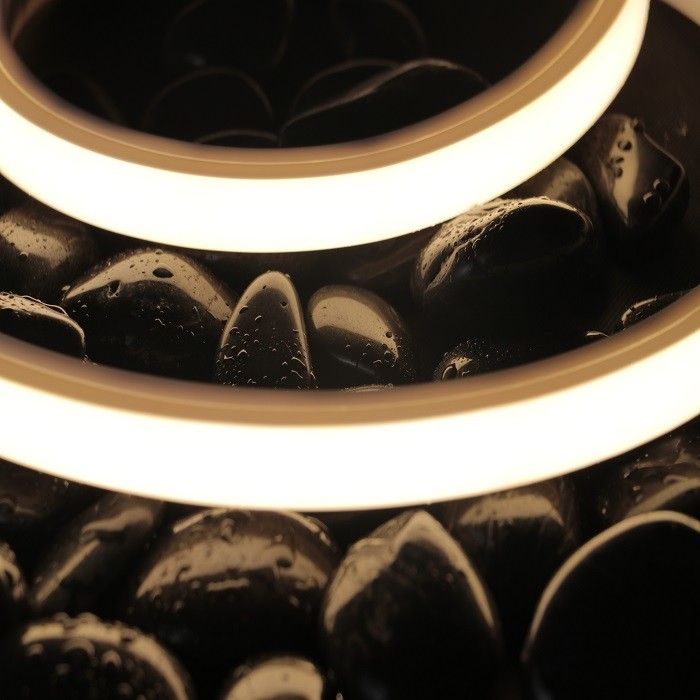

UV Resistant Dot free PU LED Strip DC24V 15W/M With IP 68 Underwater project
Description:
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model |
LEDLINE FLEX TOP RGBW
|
|
Efficacy(lm/W)
|
37
|
|
Power(W/m W/ft)
|
15/4.6 |
| LED Power | 15W/m |
| LED Color | RGBW |
| Input Voltage | DC24V |
| Neon Dimension | 16mm*15mm |
| Unit cut | 71.43mm |
| IP Grade | IP68 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 562LM/M(4000K) |
Download datasheet:LEDLINE FLEX TOP RGBW Datasheet.pdf
Notices:
- The product delivery length is 5M/reel maximum. Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the production process and the electrical components, values for light output and electrical power can vary up to 10%.
- The given color temperature is the strip (after coating) color temperature.
- The product can be cut ONCE only and finish with end cap & glue, then IP rating drops to IP67.
- Please make the cable connection out of water for underwater installation. It is 3 years warranty for underwater applications.
- Standard cable length is 30cm, if you need cable longer than 30cm, please use our extension connector with 1m or 5m cable.
- It is IK08 rated
Applications:
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Are you a manufacturer?
A: Yes, we have our own factory and professional engineers to meet your any requirements. Welcome you to visit our factory.
Q2. OEM OR ODM accepted?
A: Yes,we can do OEM & ODM,logo on the light or package both are available.
Q3. Is it possible to visit the factory?
A: Of course, we welcome customers to experience our production equipment and standard production environment
Q4. What are your main products?
A: Our company dedicated in LED Strips for more than 10 years. Our main products are led strip, cob(CHIP ON BOARD) strip, neon flex and rigid bar.
