Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | Purple SMD strips |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 2-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | Purple SMD Strips | LED Type: | SMD5050 |
|---|---|---|---|
| LED Quantity: | 120leds/m | Certification: | CE, RoHS, Reach, UL |
| PCB Width: | 15mm | Voltage: | 24V |
| High Light: | 5050 SMD UVC LED Strip,IP65 Waterproof UVC LED Strip,UVA SMD LED Strip Light |
||
Product Description

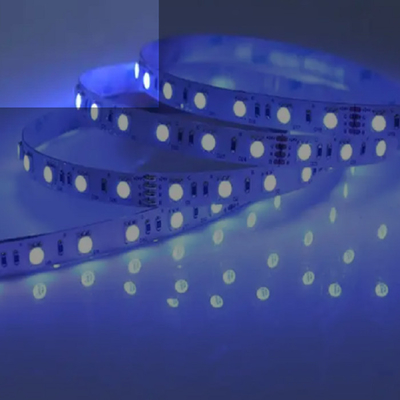

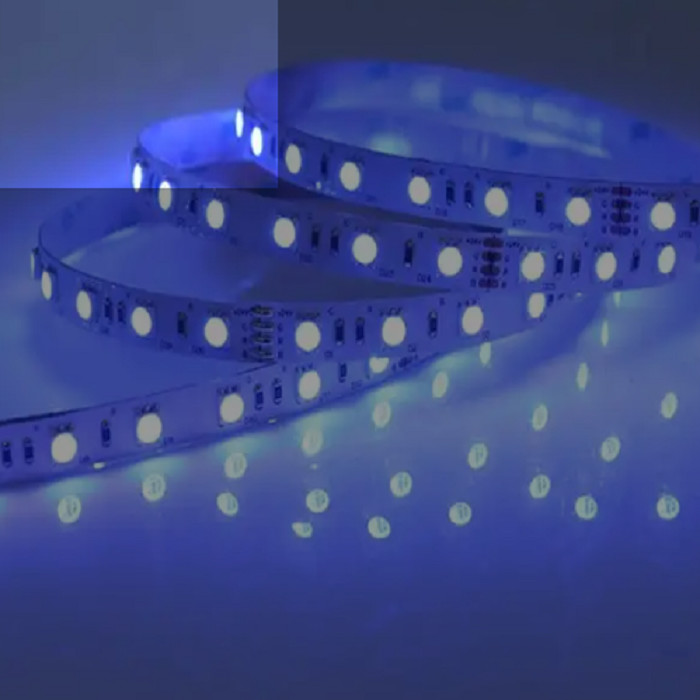

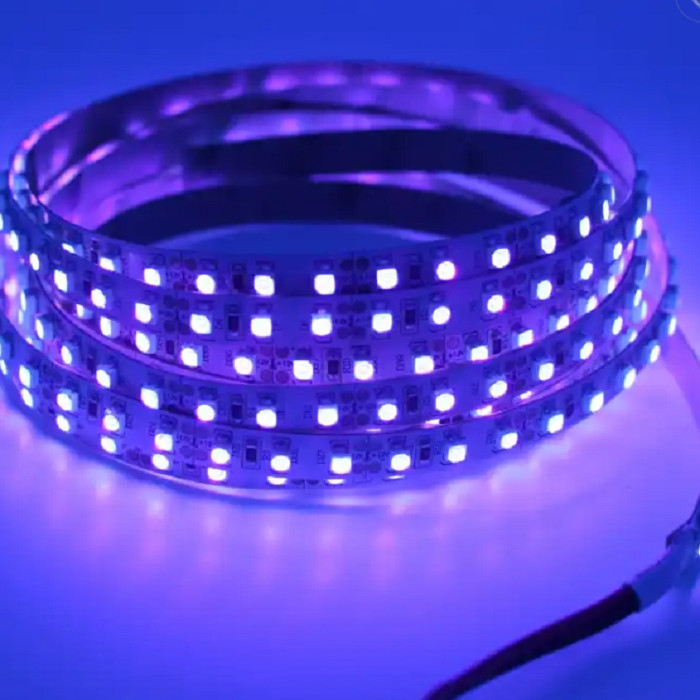

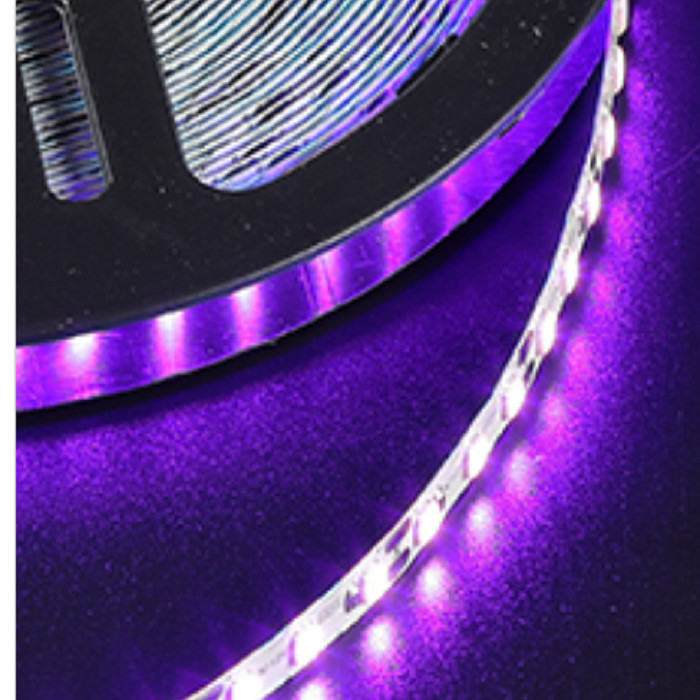

CCIP Purple UVA UVC led strip 12V/24V IP20/IP65 waterproof 5050 SMD 20m/roll
Quick Detail:
· Size 15mm Width PCB
· SMD 5050 Strip
· IP20/IP65
· Indoor application
· CE, RoHS, Reach, UL compliant
· Life Span >30000H
· 3 Year Warranty
· Purple 395-400nm
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | Purple SMD strips |
| LED Type | SMD5050 |
| LED Quantity | 120leds/m |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >30000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20/IP65 |
| Warranty | 3 Years |
| CRI | Ra90 |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color | Purple |
| Power(W/M) | 28.8W/m |
| Reel | 20M/reel |
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self adhensive tape is torn with the led strip,otherwise the led strip will be damaged
When install the led strip,please note the installation technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power supply(transformer).Please don,t connect the led strip directly to the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of the adhesive,The electrical connection process must be operated by a professional person.
Applications:
Especially suitable for signage which requires high brightness.
It’s ideal for any indoor back lighting applications.
With the use of profiles, the light effect will be more uniform and soft.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. What is SMD LED strip?
A: SMD LED strip is a type of LED lighting product that uses surface-mounted diodes (SMDs) as the light source. It is characterized by its high brightness, low power consumption, and flexible design.
Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q3. What are your payment terms?
A:100% Payment before production or 30% deposit+ 70% before shippment(The latter requires a single payment of more than $10,000)
Q4. Is it possible to visit the factory?
A: Of course, we welcome customers to experience our production equipment and standard production environment.
