Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE RONDO WHT |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE RONDO WHT | LED Color: | 2700K-6000K |
|---|---|---|---|
| Input Voltage: | DC24V (23.5Vmin, 24.5Vmax) | Ra: | 90 |
| Neon Diameter: | 25mm | Unit Cut: | 50mm |
| Storage Temperature: | -25℃ /-13℉min, 60℃ /140℉max | Mini Cutting Unit: | 12 LEDs |
| High Light: | 50mm Neon LED Strip Light,3D Bending Flexible Neon Strip,Tunable Flexible Neon Strip |
||
Product Description

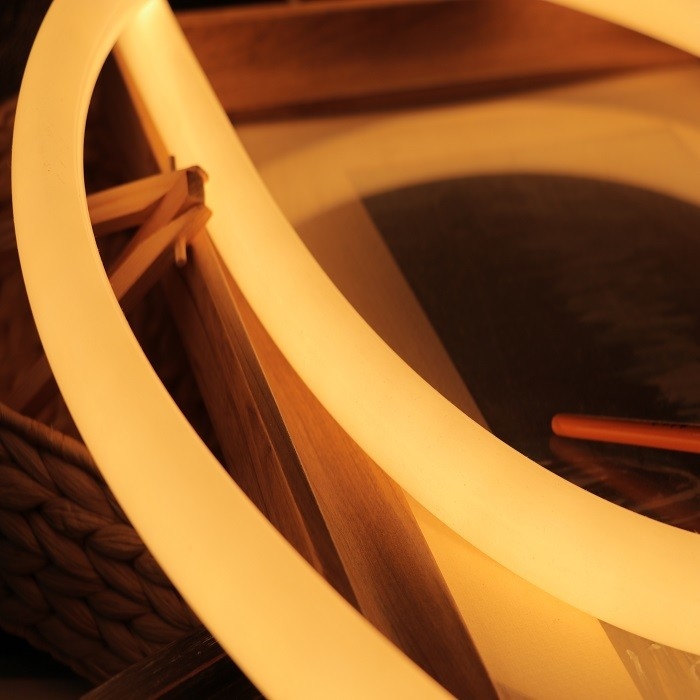

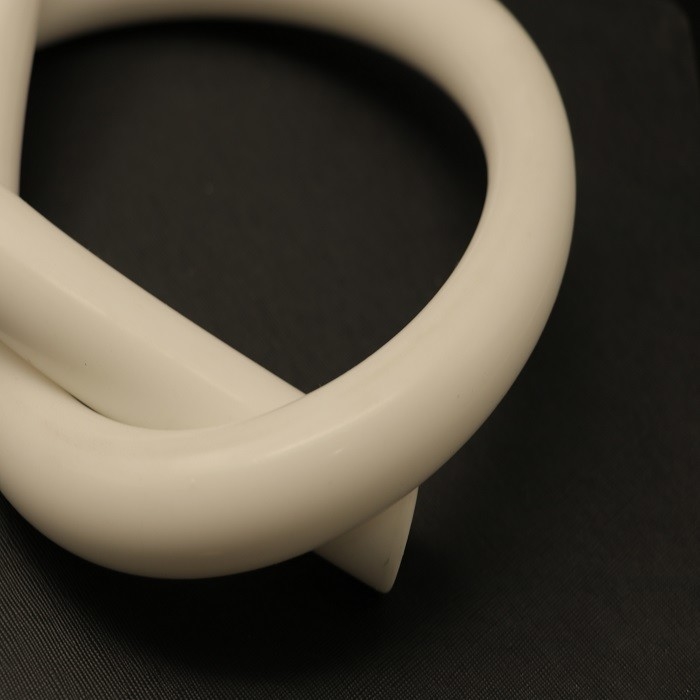

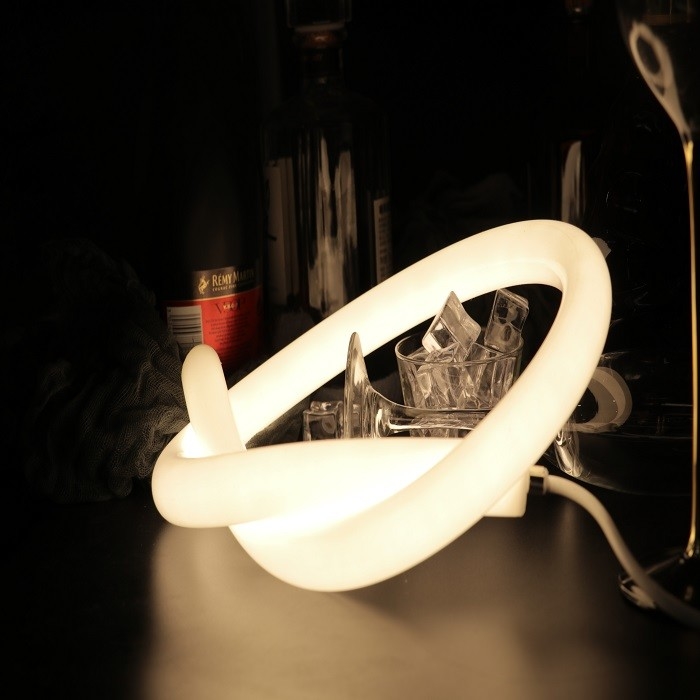

3D Bending 24V 360° luminous uniformity LED Strip Light Tunable White IP65 Waterproof
Quick Details:
· Voltage: DC24V
· Neon Diameter: 25mm
· Beam Angle: 360°
· Cutting Interval: 50mm
· Power: 5W/m;10W/m
· CRI: Ra90
· CCT: 2700K-6000K
· Max Run Lenghth: 5m
· IP Rating: IP65
· Endcap Option: Injected
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Description:
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | LEDLINE RONDO WHT |
| SMD Type | Lumileds 2835 |
|
LED PIN Temperature
|
Max. 65℃ /149o F
|
| LED Power | 10W/m |
|
LED Distance
|
8.33mm
|
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Diameter | 25mm |
| Unit cut | 50mm |
| IP Grade | IP65 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
Download datasheet: LEDLINE Rondo.pdf
Notices:
1. The product is not available for cutting.
2. When ambient temperature reaches 55℃ , the power is suggested to be 5W/M.
3. Max. run length refers to single side feed in serial connection.
4. The given data are typical values due to the tolerances of the production process and the electrical components, values for light output and electrical power can vary up to 10%.
5. The given color temperature is the temperature of finished product.
6. Max production length 5 meters per reel, and the standard packaging is 5meters per reel.
7. Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.
Applications:
l Solutions for retail shops, any indoor projects
l Ideal for amazing different shape lighting application
l Suitable for Aesthetic art lighting application
Signage and illuminated advertising lighting
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. What are Silicone Neon Strips?
A: Silicone Neon Strips are a type of flexible, durable, and energy-efficient LED lighting solution. They are encased in a silicone jacket, making them waterproof and resistant to various environmental conditions. These strips are widely used in architectural lighting, signage, and decorative installations both indoor and outdoor.
Q2. Can I cut Silicone Neon Strips to the desired length?
A: Yes, you can cut Silicone Neon Strips to the desired length, following the cutting marks indicated on the strip. It is essential to use proper tools and seal the cut ends to maintain the waterproof integrity of the product.
Q3. Do you provide technical support?
A: Yes, we offer technical support to our customers. Our team of experts can assist you with product selection, installation guidance, and troubleshooting to ensure a successful project outcom
Q4. What is the lead time for Silicone Neon Strips orders?
A: The lead time for Silicone Neon Strips orders typically ranges from 2-4 weeks, depending on the order size and customization requirements. Our sales team will provide you with an estimated delivery time when you place your order.
