Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE ASTON 1212-35 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE ASTON 1212 WHT-35 | SMD Type: | 2835 |
|---|---|---|---|
| Max. Run Length: | 13M@10W/M | Storage Temperature: | -25℃ ～ +60℃ |
| Life span: | >54000hrs | Certification: | CE, RoHS, Reach, UL |
| Unit Cut: | 50mm | ||
| High Light: | Ra93 Flexible Neon Strip,SMD2835 Flexible Neon Strip,Ra93 Flexible Led Neon Tube Light |
||
Product Description

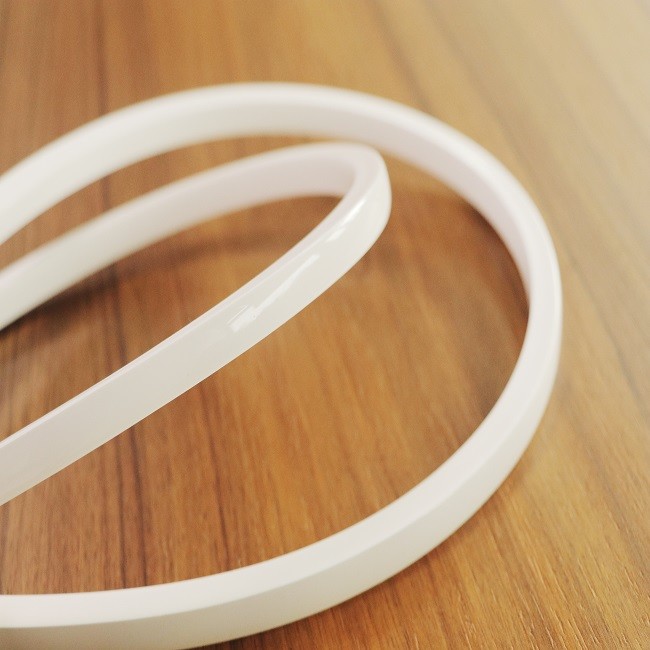

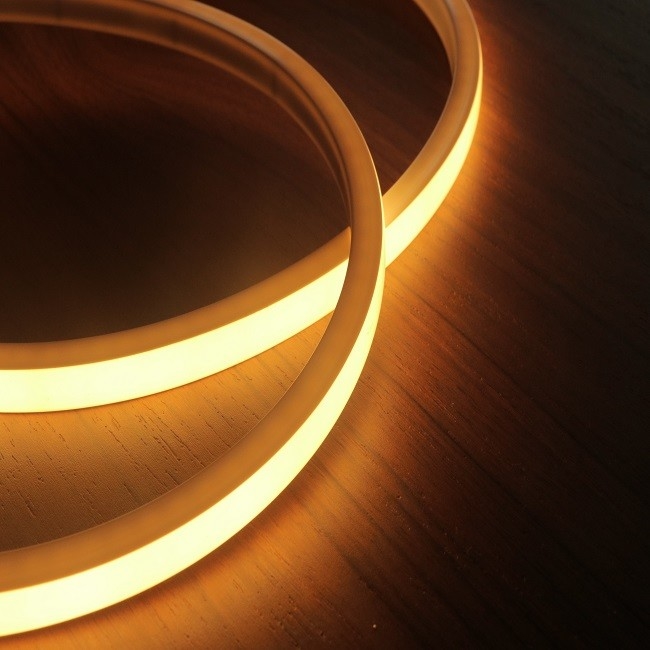

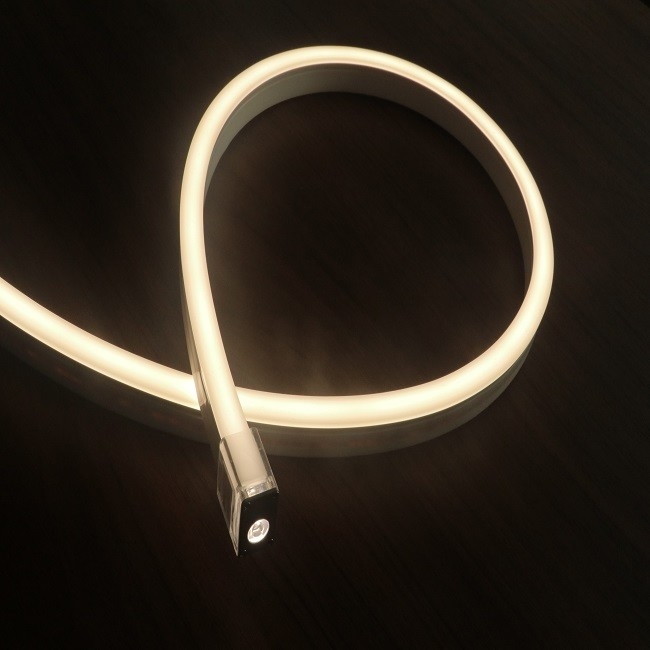

SMD2835 Ra93 Flexible Neon Strip Warm Color 3500K Horizontal Bending
DC24 Ra93 Warm Color 3500K 1220 Horizontal Bending 10W/M Ra93 30mts/Reel
Description:
-Flexible end caps for your optional,like the injection end cap, assemble end cap and glue end cap, offer you one stop linear solution.
-Ideal for the outdoor decorative, facade lighting with 5 years warranty.
Quick Detail:
· Size 12x12mm
· UV-resistance(no yellowish)
· Lumileds LED
· Maximum run length 13M@10W/m
· IP67 rating
· Cable entry directions: Front/Side/Bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | LEDLINE ASTON WHT 1212-35 |
| CRI | Lumileds 2835 |
| Beam Angle |
Ra93 |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 13M@10W |
| Power | 5W/M/10W/M |
| LED Color | Neutral white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 4000K |
| Power(W/M) | 5W/M,10W/m |
| Lumen | 281lm/m@5W/m |
| 627lm/m@10W/m |
Download datasheet: LEDLINE ASTON 1212 WHT Datasheet.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE NEON 1212 is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample oordersto tests and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for the led light order?
A: Low MOQ, 1pc for sample checking is available.
