Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE LIGO |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE LIGO | LED Type: | Lumileds 2835 |
|---|---|---|---|
| IP Grade: | IP20 | Efficiency(LM/W): | 80lm/w |
| Power(W/M): | 1.2W/unit ,2.5W/nuit, 6W/unit, | LED Color: | White ( Cold White & Warm White) |
| Warranty: | 5 Years | Beam Angle: | 120° |
| High Light: | WHT Rigid LED Strip,SMD 2835 Rigid LED Strip,DIY Connect SMD 2835 LED Light |
||
Product Description

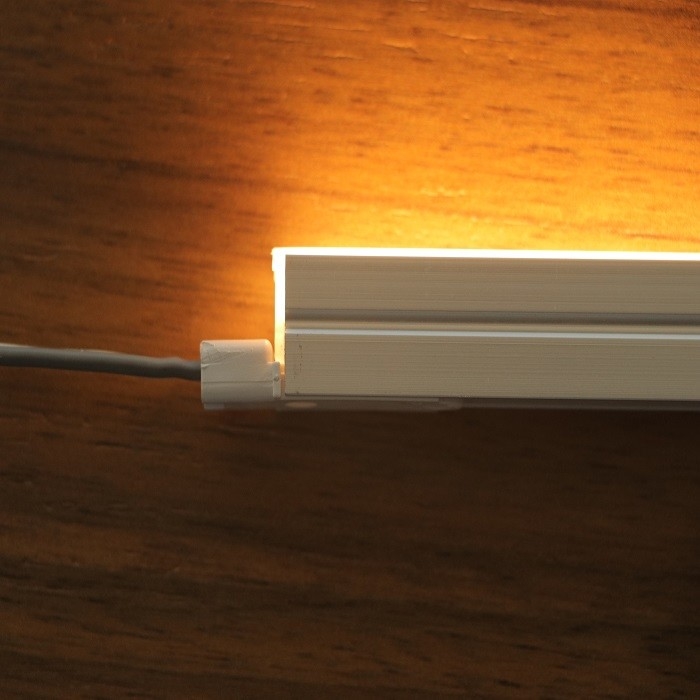

Warm / Cold White Rigid LED Strip WHT 24V Lumileds 2835 LED Light DIY Connect
Description:
- Suitable for KBB, free combination length
- Easy to create your desired lengths and shapes thanks to our smart accessories.

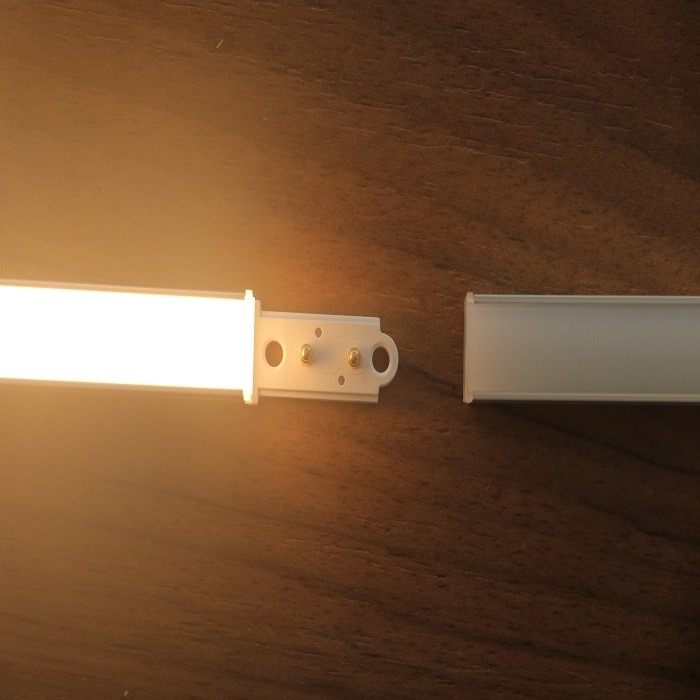

- Quick DIY connection & soldering free & without light interruption in desired shapes.
- Slim in size 12.5*13mm(W*H)
- Max 8M single feed without brightness attenuation
CUSTOM PARAMETERS PLS CONTACT US
Specifications:
| Model | LEDLINE LIGO |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >50000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Production Length | 100mm, 200mm, 500mm |
| CRI | Ra90 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K/3000K/3500K/4000K/6500K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 1.2W/M,2.5W/M, 6W/M, |
| Efficiency(LM/W) | 80lm/w(4000K) |
Download datasheet: LEDLINE LIGO.pdf
Notices:

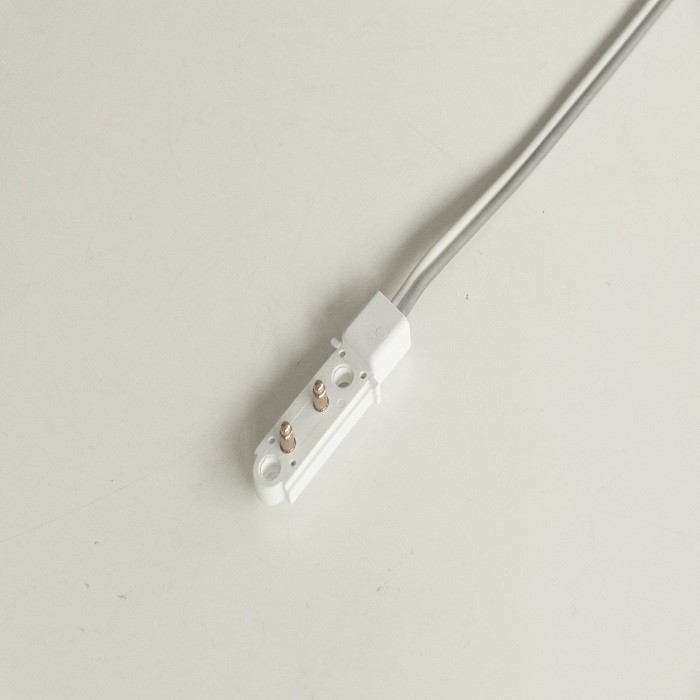

Connector should be firmly inserted at both ends of the LIGO, the maximum connection power of the same group is 100W.
Applications:

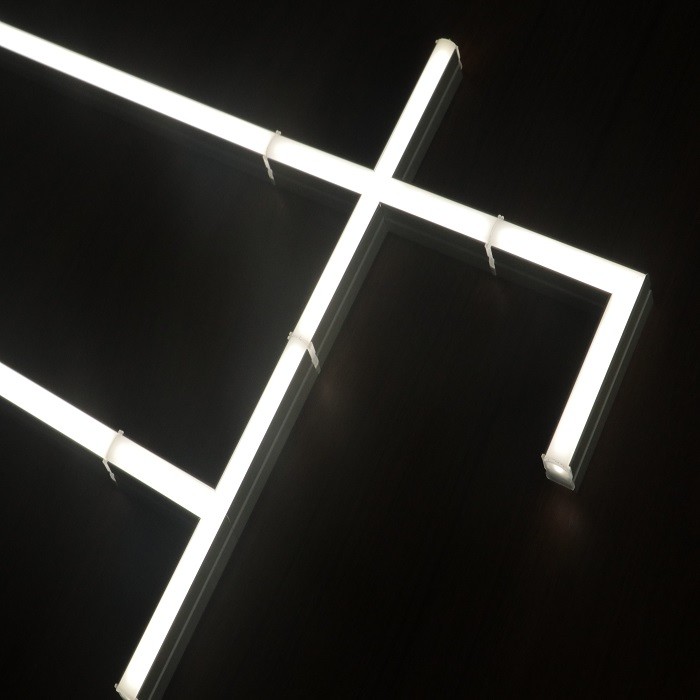

LEDLINE LIGO suitable for retail shops, KBB, gallery, show-booth and exhibition room no limits to your imagination in shape. Perfect good performance in jewelry cabinet, commodity display cabinet and interior furniture. Desired light effect in bar counter, restaurant, hotel and task lighting applications.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
