Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ERP 2835 210 WHT 4000K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP 2835 210 WHT 4000K | LED Type: | SMD2835 |
|---|---|---|---|
| LED Quantity: | 210leds/m | Certification: | CE, RoHS, Reach, UL |
| Life span: | >54000hrs | Warranty: | 5 Years |
| High Light: | LED Neon Strip WHT 4000K,neon flex strip light SMD2835,LED Neon Strip IP20 JRLite |
||
Product Description

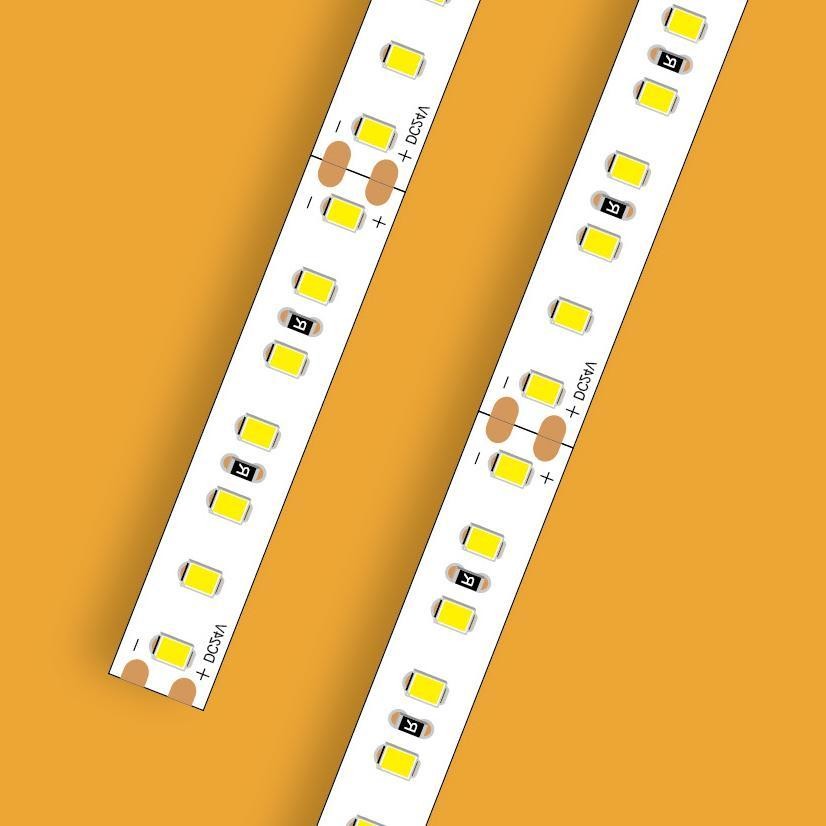

ERP 210LEDs/M WHT 4000K ERP led strip 2835 5 years Warranty indoor use
Quick Detail:
· Size 10mm Width PCB
· SMD2835 Strip
· Maximum run length 5M@19.2W/m
· IP20
· Indoor application
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Description:
- 33.3mm unit cut, 10mm width, 96LM/W.
- Long lifespan and excellent in heat dissipation.
- Good lighting performance, energy saving and environmental protection.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | ERP COVEFLEX 2835 210-4000K |
| LED Type | SMD2835 |
| LED Quantity | 210leds/m |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra90 |
| SDCM(Finished Product) | <6 |
| Working Energy Consumption(kWh/1000h) 0.5m | 9.6 |
| Lumen Maintenance Factor | 0.96 |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 4000K |
| Power(W/M) | 19.2W/m |
| Lumen/0.5M | 96lm/m |
| Energy Efficiency Class | F |
Download datasheet:ERP COBEFLEX 2835 210.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self adhensive tape is torn with the led strip,otherwise the led strip will be damaged
When install the led strip,please note the installation technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power supply(transformer).Please don,t connect the led strip directly to the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of the adhesive,The electrical connection process must be operated by a professional person.
Applications:
Especially suitable for signage which requires high brightness.
It’s ideal for any indoor back lighting applications.
With the use of profiles, the light effect will be more uniform and soft.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
