Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ASTON 1212 IQ-2755 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ASTON 1212 IQ-2755 | LED Type: | Lumileds 3014 |
|---|---|---|---|
| Beam Angle: | 120° | LED PIN Temperature: | Max.65℃ |
| Storage Temperature: | -25℃ ～ +60℃ | CRI: | Ra80 |
| Life span: | >54000hrs | Certification: | CE, RoHS, Reach, UL |
| Color Temperature: | 2700K+5500K | Power(W/M): | 10W/m |
Product Description

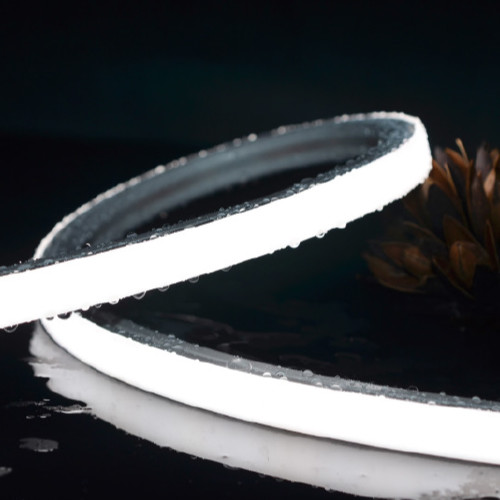

LED neon light 2700+5500K IP67 tunable white SDCM3 RA90 5years warranty for facade
Description:
-LEDLINE ASTON 1212 IQ, DC24V. Cross section size 12mm x 12mm / 0.47" x 0.47" (W x H), which is vertical bending with radius of 120mm / 4.72".
-IP67 protected, UV resistant, chemical resistant and mechanical connectors for indoor & outdoor solutions. Very easy to cut & reconnect on site.
Quick Detail:
· Size 12x12mm(WxH) / 0.47" x 0.47"(WxH)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 5M@10W/m
· IP67 rating
· Cable entry directions: Front/Side/Bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | ASTON 1212 IQ-2755 |
| LED Type | Lumileds 3014 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M@10W |
| CRI | Ra80 |
| LED Color | Tunable white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K+5500K |
| Power(W/M) | 10W/m |
| Lumen(2700K+5500K) | 708lm/m@10W/m |
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE NEON 1212 IQ is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
Hotel, restaurant, handrails lighting.
Shop, residential, offices lighting.
Organic shaped luminaires.
Ideal for architectural lighting, object integration and signage.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
