Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE ASTON 1212-50 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE ASTON 1212-50 | LED Type: | Lumileds 2835 |
|---|---|---|---|
| Beam Angle: | 120° | LED PIN Temperature: | Max.65℃ |
| Storage Temperature: | -25℃ ～ +60℃ | CRI: | Ra90 |
| Max. Run Length: | 13M@10W | Color Temperature: | 5000K |
| High Light: | Flexible LED Neon Tape JRLite,silicone coated led strip DC24V,LED Neon Tape SMD 2835 |
||
Product Description

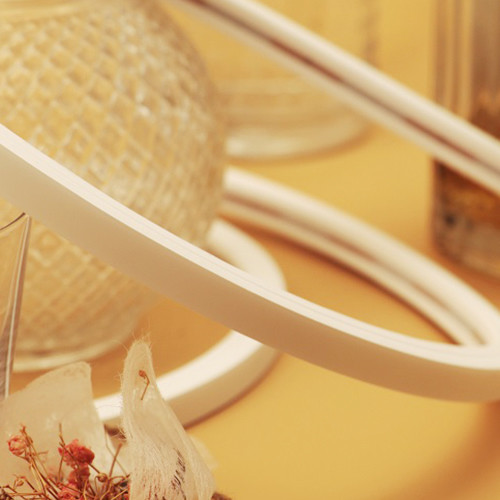

Flexible LED neon tape SMD 2835 5000K IP67 silicone coated with DC24V for outdoors
Description:
- Injected end cap easily can fit in profile and seamless luminous when connected.
- LEDLINE ASTON 1212 WHT, DC24V. Cross section size 12mm x 12mm / 0.47" x 0.47" (W x H), which is vertical bending with radius of 120mm / 4.72".
Quick Detail:
· Size 12x12mm(WxH) / 0.47" x 0.47"(WxH)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 13M@10W/m
· IP67 rating
· Cable entry directions: Front/Side/Bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | LEDLINE ASTON 1212-50 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 13M@10W |
| CRI | Ra90 |
| LED Color | Cold white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 5000K |
| Power(W/M) | 5W/M,10W/m |
| Lumen | 281lm/m@5W/m |
| 644lm/m@10W/m |
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE NEON 1212 is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
- Facade lighting, contour lighting and landscape lighting.
- Solutions for retail shop.
- Signage and illuminated advertising.
- Ideal for architectural lighting, coves, object integration.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
