Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | RONDO IQ 2700K+5000K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | RONDO IQ 2700K+5000K | SMD Type: | Lumileds 2835 |
|---|---|---|---|
| LED Color: | 2700K+5000K | Input Voltage: | DC24V |
| Ra: | 90 | Neon Diameter: | 25mm |
| Unit Cut: | 50mm | Storage Temperature: | -25℃ /-13℉min, 60℃ /140℉max |
| High Light: | 3D Bending 24V LED Strip Light,24 volt waterproof led light strips,24v led strip light IP65 |
||
Product Description

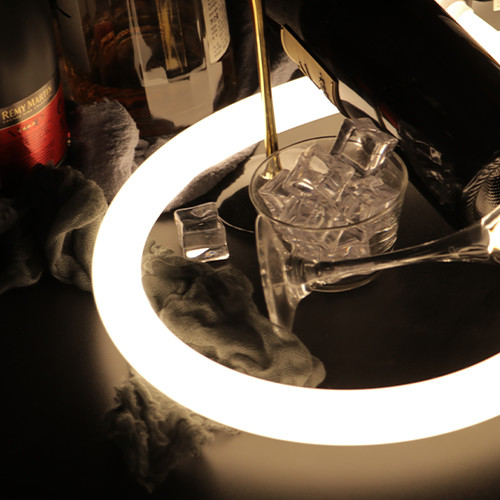

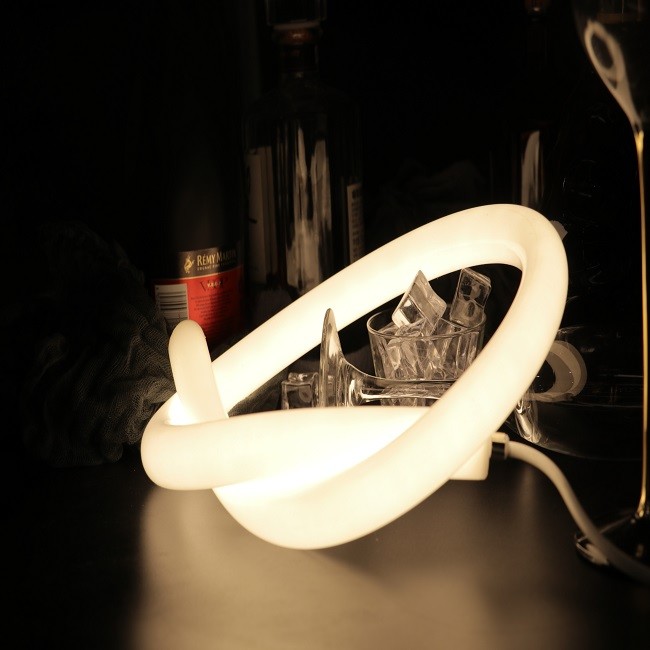

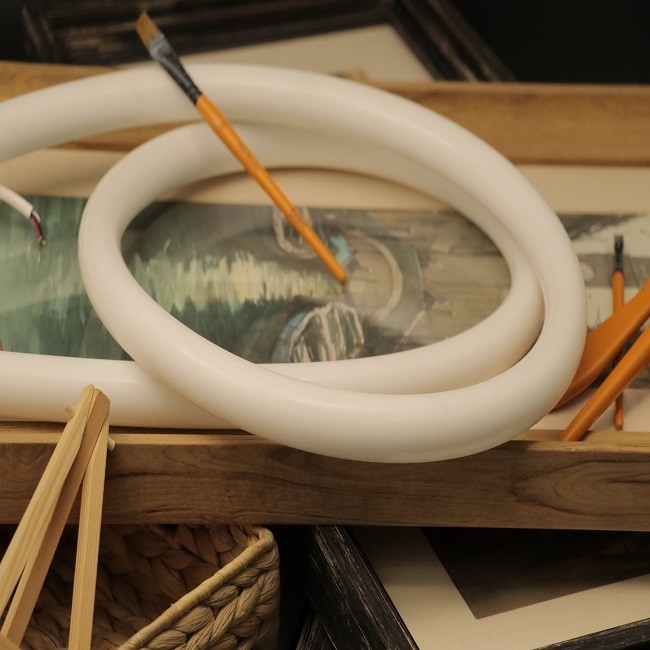

24V 360°luminous 3D bending double white light IP65 Flex Neon 24V LED Strip Light Tunable White Light
Quick Details:
· Voltage: DC24V
· Neon Diameter: 25mm
· Beam Angle: 360°
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CRI: Ra90
· CCT: 2700K+5000K
· Max Run Lenghth: 5m
· IP Rating: IP65
· Endcap Option: Injected
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Description:
- 360°luminous uniformity without any shadow.
- IP65 protected, UV resistant, chemical resistant and flame retardant.
- Max.run Length 5M.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | LEDLINE RONDO 2700K+5000K |
| SMD Type | Lumileds 2835 |
| LEDs/m | 240LEDs/m |
| LED Power | 10W/m |
| LED Color | 2700K+5000K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Diameter | 25mm |
| Unit cut | 50mm |
| IP Grade | IP65 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 517LM/M |
Download datasheet: LEDLINE Rondo.pdf
Notices:
1. The product is not available for cutting.
2. When ambient temperature reaches 55℃ , the power is suggested to be 5W/M.
3. Max. run length refers to single side feed in serial connection.
4. The given data are typical values due to the tolerances of the production process and the electrical components, values for light output and electrical power can vary up to 10%.
5. The given color temperature is the temperature of finished product.
6. Max production length 5 meters per reel, and the standard packaging is 5meters per reel.
7. Standard cable length is 30cm, if you need cable longer than 30cm, please mention us the required cable length.
Applications:
l Solutions for retail shops, any indoor projects
l Ideal for amazing different shape lighting application
l Suitable for Aesthetic art lighting application
Signage and illuminated advertising lighting
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
