Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ASTON 1010 SIDE-35 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ASTON 1010 SIDE-35 | LED Type: | Lumileds 2835 |
|---|---|---|---|
| LED PIN Temperature: | Max.65℃ | Storage Temperature: | -25℃ ～ +60℃ |
| Life span: | >54000hrs | Certification: | CE, RoHS, Reach, UL |
| IP Grade: | IP67 | Color Temperature: | 3500K |
| High Light: | DC24V Led Neon Flex Strip,flexible neon lighting IP67 JRLite,3500K Led Neon Flex Strip |
||
Product Description

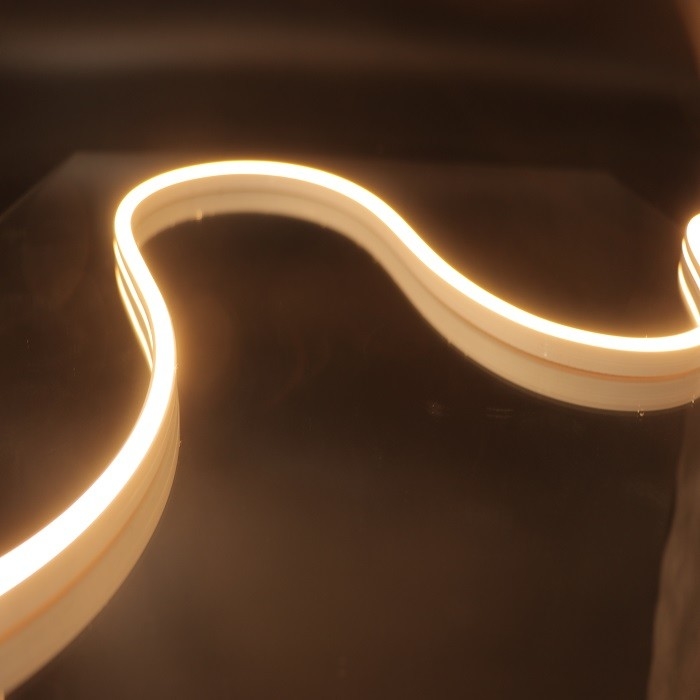

DC24V horizontal bending 3500K silicone led neon flex strip lighting for outdoor lighting
Description:
- Horizontal bending 10mm x 10mm / 0.39" x 0.39" (W x H) silicone strip led neon with bending radius of 100mm /3.93".
- Neon is Solid as the manufacturing technique is co-extrusion, the most advanced technology in China
- Ideal for retail shop lighting, cabinet lighting, display lighting.
Quick Detail:
· Size 10mm x 10mm / 0.39" x 0.39" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 5M@10W/m
· IP67 rating
· Cable entry directions: Front cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | ASTON 1010 SIDE-35 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +65℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra90 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 3500K |
| Power(W/M) | 5W/m;10W/m |
| Lumen | 306lm/m@5W/m |
| 593lm/m@10W/m |
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 1010 SIDE is 100mm, do not bend to top direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
1. Side bending, better lighting performance& higher brightness, suitable for commercial lighting, general lighting, detail lighting required exquisite
designs.
2. Ideal for KBB lighting, retail shop lighting, cabinet lighting.
3. Grand hotel, apartment, lobby hall.
4. Fits for shopping mall, flagship store, restaurant.
Product Datasheet: LEDLINE ASTON 1010 SIDE.pdf
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Description:
-Horizontal bending 10mm x 10mm / 0.39" x 0.39" (W x H) silicone strip led neon with bending radius of 100mm /3.93".
-Neon is Solid as the manufacturing technique is co-extrusion, the most advanced technology in China
-Ideal for retail shop lighting, cabinet lighting, display lighting.
