Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE ASTON 1220 Media |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE ASTON 1220 Media | IP Grade: | IP67 |
|---|---|---|---|
| Certification: | CE, RoHS, Reach, UL | Warranty: | 3 Years |
| Max. Run Length: | 5M | Color Temperature: | RGB |
| Input Voltage(v): | DC24V | Color Temperature(cct): | RGB |
| High Light: | RGB silicone led neon,rgb light strip IP67,silicone led neon 1220 |
||
Product Description

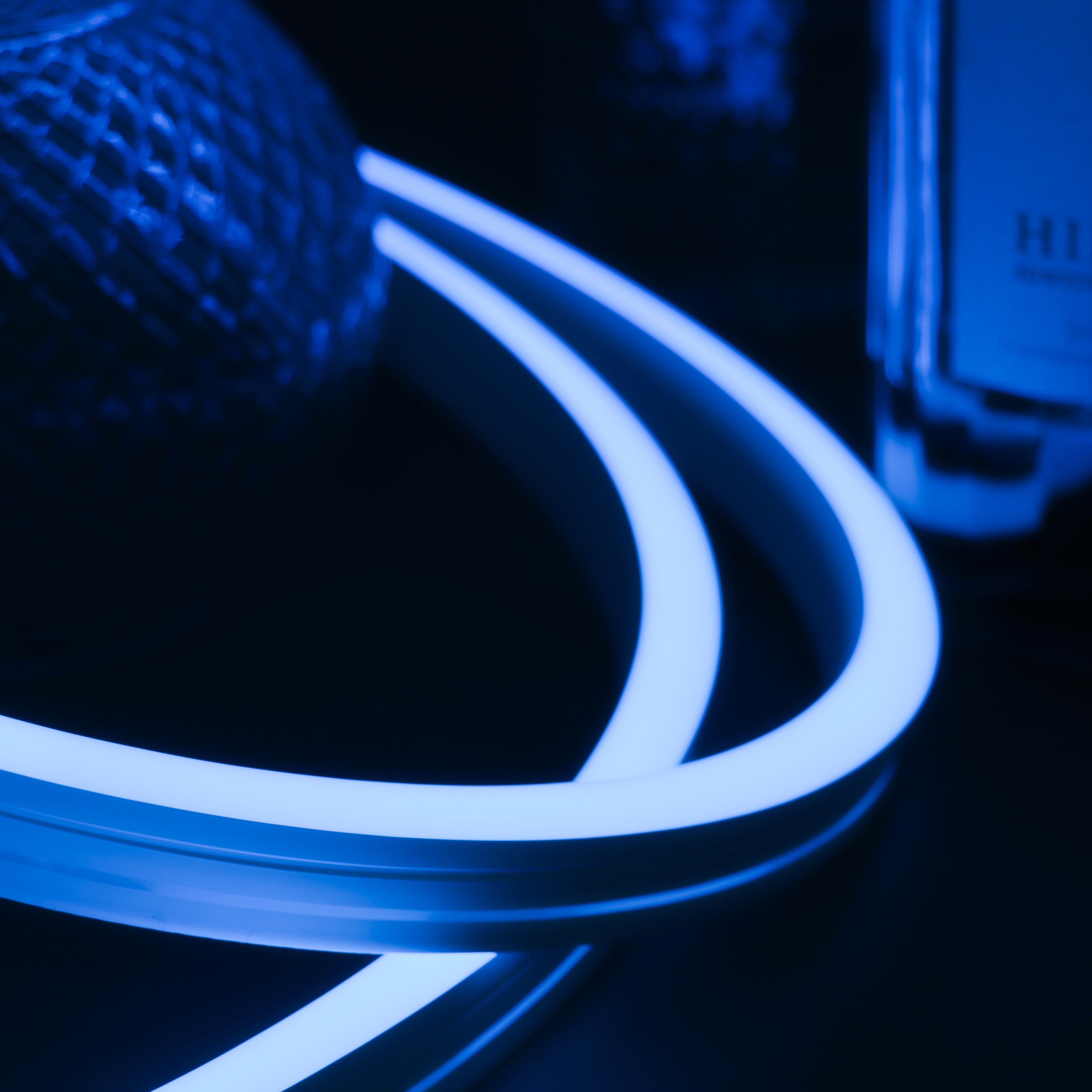

RGB Silicone LED Neon 1220 IP67 Protection Horizontal Bending DMX512 Control Mode
Description:
-- IP67 protected, UV resistant, chemical resistant and easy play and plug connection for indoor & outdoor solutions.
- DMX512 control mode and dor free lighting guarantee the most excellent color changing performance overrated lifetime.
- Decoration lighting for game machines.
Quick Detail:
· IP67 Silicon material, IP67 protected,
· Size 12x20mm(WxH) / 0.47" x 0.79"(WxH)
· 3 Step MacAdam bin ensures color consistency
· Totally dot-free lighting effect
· Cable entry directions: Front/Side/Bottom cable entry
· CE, RoHS, Reach, UL compliant
· Flexible installation with the clips or profile
Specifications:
| Tech Date | |
| Model | LEDLINE ASTON 1220 Media |
|
Gray Scale
|
65536
|
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >30000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 3 Years |
| Max. Run Length | 5M |
|
Control Mode
|
DMX 512
|
| LED Color | RGB PIXEL |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | RGB |
| Power(W/M) | 10W/M |
Download datasheet: LEDLINE ASTON 1220 MEDIA Datasheet.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Please light it up for a quick check before installation.
2.Bending diameter of LEDLINE ASTON 1220 MEDIA is 240mm, do not bend to upward or downward direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
