Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | JRLite OEM/ODM |
Certification: | UL / TUV / CE / ROHS / REACH |
Model Number: | VENUS HD WHT 2700K |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1PC |
Price: | Negotiable |
Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
Delivery Time: | 3-4 weeks after payment |
Payment Terms: | D/P T/T Paypal |
Supply Ability: | IP20 LED strip 50000m per day |
Detail Information |
|||
Model: | VENUS HD WHT 2700K | SMD Type: | Sanan 2835 |
---|---|---|---|
Beam Angle: | 120° | LED PIN Temperature: | Max.65℃ |
Storage Temperature: | -25℃ ~ +60℃ | Certification: | CE, RoHS, TUV,REACH, UL |
LED Color: | Cold White | Color Temperature: | 2700K |
High Light: | Constant Current Smart LED Light Strip,2700K LED Strip light,Smart LED Light Strip RA90 |
Product Description

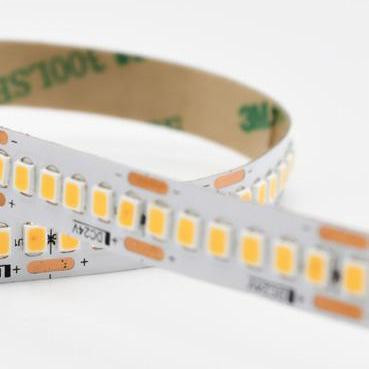

Constant current monster smart led light strip RA90 2700K 3step MacAdam
Quick Detail:
· Longer length, less driver
· Reliable Sanan LED 3Step
· 120º beam projection
· Maximum run length 9M@19.2W
· IP20 for all indoor application
· CE, RoHS, Reach, UL compliant
· 5 years warranty
· Flexible connector
Description:
- High density LED layout minimizes the spots
- Constant current design to achieve longer run lengths
Specifications:
Tech Date | |
Model | VENUS HD WHT 2700K |
LED Type | Sanan 2835 |
Beam Angle | 120° |
LED PIN Temperature | Max.65℃ |
Storage Temperature | -25℃ ~ +60℃ |
Certification | CE, RoHS, Reach, UL |
IP Grade | IP20 |
LEDs.m | 240LEDs.m |
Width | 10mm |
Unit Cut | 25mm |
Max. Run Length | 9M@19.2w |
CRI | Ra90 |
LED Color | Cold white |
Voltage | DC24V(23.5Vmin, 24.5Vmax) |
Color Temperature | 2700K |
Notices:
-The LED strip bending radius is 75mm. Please do not fold with sharp angle or twist the LED strip.
-It will be likely to destroy the LED strip if exceed the maximum rated operating voltage.
Please do not connect the LED strip beyond the maximum connecting length.
-LED strips are equipped with a self-adhesive tape for attaching the LED strip to suitable materials, such as aluminum profiles, which must be clean and free of oil or silicone coatings, as well as other dirt/dust particles. The adhesive tape is intended for single use and if removed may damage the material to which it is stuck and the LED module itself, which must then be scrapped.
Applications:
-Constant current IC built- in LED ensures same brightness at both ends.
Longer max.
-Run length of 9M makes connection much easier to save installation cost.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
