Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ERP 2835 140 WHT 3000K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP 2835 140 WHT 3000K | Life span: | >54000hrs |
|---|---|---|---|
| LED Quantity: | 140leds/m | Chromaticity Coordinates (x And Y): | X=0.44/ Y=0.403 |
| IP Grade: | IP20 | Warranty: | 5 Years |
| Max. Run Length: | 5M | CRI: | >Ra90 |
| High Light: | 9.6W LED Neon Strip,9.6W Led Strip WHT 3000K,TUV LED Neon Strip ERP 2835 |
||
Product Description

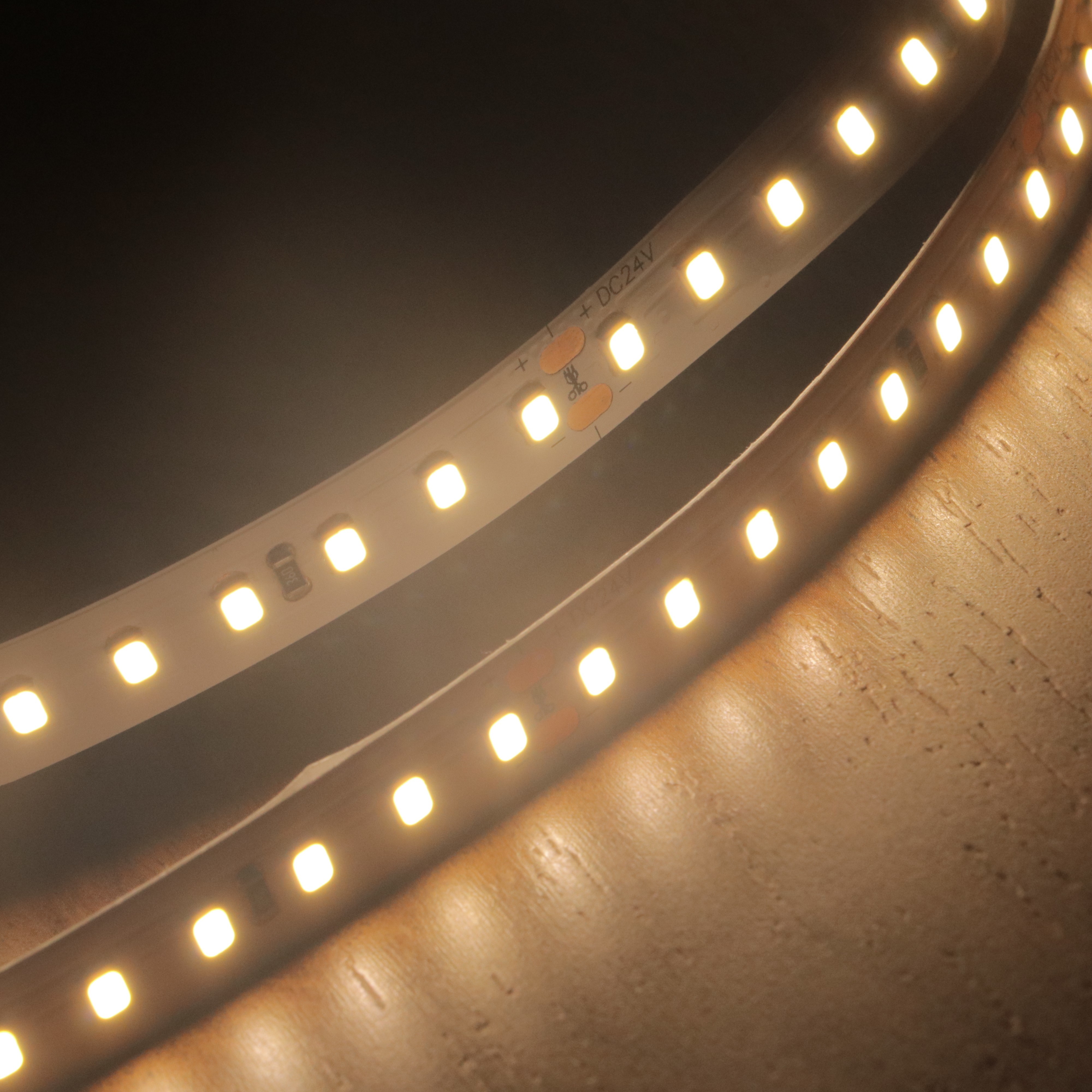

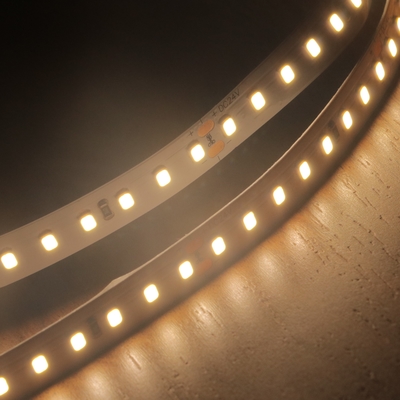

ERP 9.6W led strip 2835 140LEDs per meter WHT 3000K 50mm unit cut
Quick Detail:
· Slim Size 10mm Width PCB
· Maximum run length 5M@9.6W/m
· IP20 rating
· Indoor application
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
· - Glossy and perfect line
· - More efficient cooling
· - Flexibility of 50mm unit cut
· - High CRI 90+
Description:
- CRI80 and CRI90 optional.
- LED chip: SDCM 3.
- Max. run Length 5M.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | COVEFLEX 2835 140 IP67 3000K |
| LED Type | PCB |
| LED Quantity | 140leds/m |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | >Ra90 |
| SDCM(Finished Product) | <6 |
| Working Energy Consumption(kWh/1000h) 0.5m | 4.8 |
| Lumen Maintenance Factor | 0.96 |
| Chromaticity Coordinates (x and y) | x=0.44/ y=0.403 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 3000K |
| Power(W/M) | 9.6W/m |
| Lumen/0.5M | 404lm/m |
| Energy Efficiency Class | F |
Download datasheet:ERP COVEFLEX 2835 140.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self adhensive tape is torn with the led strip,otherwise the led strip will be damaged
When install the led strip,please note the installation technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power supply(transformer).Please don,t connect the led strip directly to the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of the adhesive,The electrical connection process must be operated by a professional person.
Applications:
- Ideal for KBB markets(kitchen, bathroom, bedroom).
- Grand hotel, apartment, lobby hall.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
