Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ERP 2835 140 WHT 2700K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP 2835 140 WHT 2700K | LED Quantity: | 140leds/m |
|---|---|---|---|
| Certification: | CE, RoHS, Reach, UL | IP Grade: | IP20 |
| Warranty: | 5 Years | Max. Run Length: | 5M |
| CRI: | >Ra90 | SDCM(Finished Product): | <6 |
| Item Type: | Light Strips | ||
| High Light: | ERP 2835 24V led strip JRLite,ip67 led strip WHT 2700K,24V led strip 140LEDs Per Meter |
||
Product Description

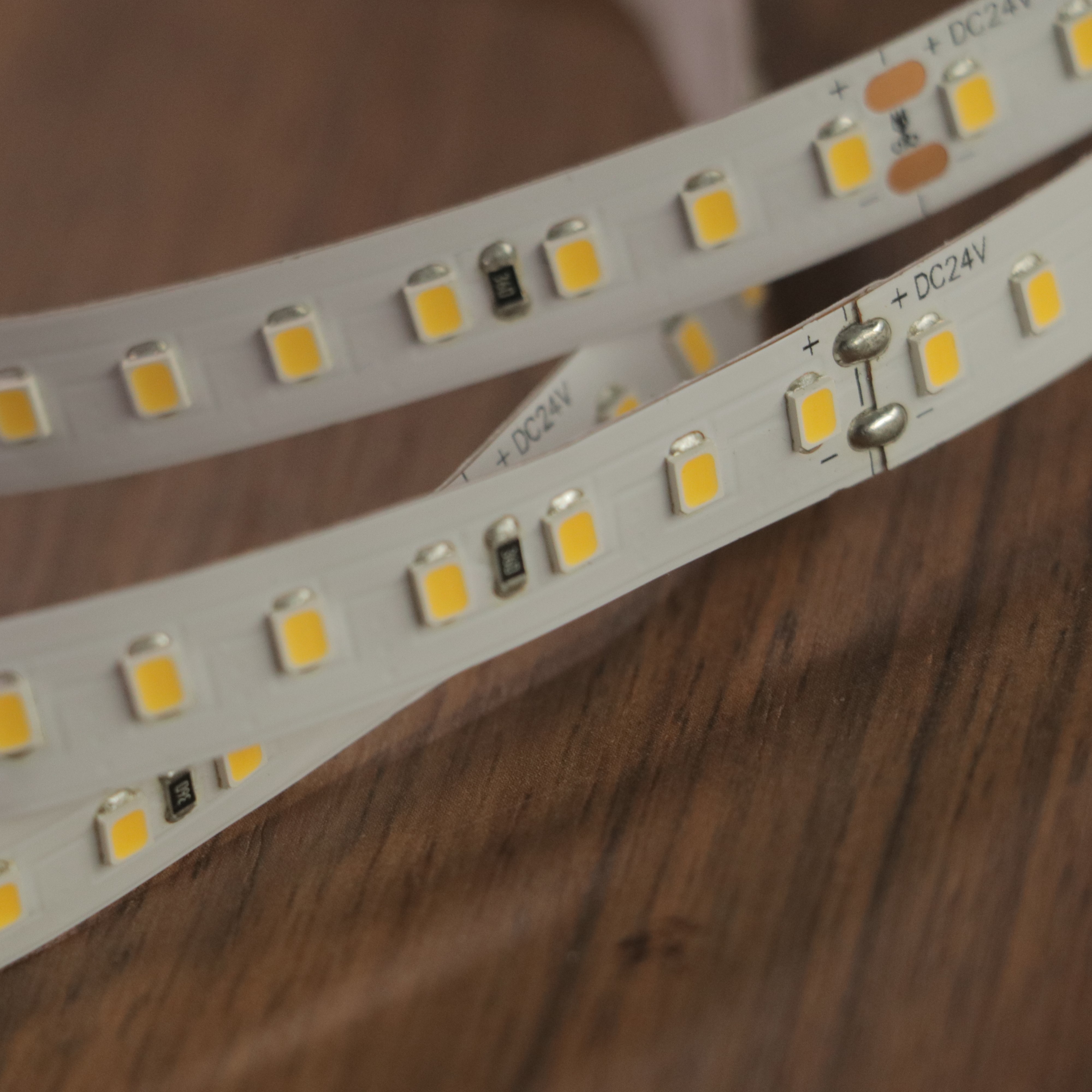

24V led strip ERP 2835 140LEDs per meter WHT 2700K 5 years Warranty IP67
Quick Detail:
· Slim Size 10mm Width PCB
· Maximum run length 5M@5.3W/m
· IP20 rating
· Indoor application
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
· - More efficient cooling
· - Flexibility of 50mm unit cut
· - High CRI 90+
Description:
- Most popular item, suitable for all outdoor projects.
- Long lifespan and excellent in heat dissipation.
- One BIN Only ensures perfect color consistency.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | COVEFLEX 2835 140 IP67 2700K |
| LED Type | PCB |
| LED Quantity | 140leds/m |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | >Ra90 |
| SDCM(Finished Product) | <6 |
| Working Energy Consumption(kWh/1000h) 0.5m | 4.8 |
| Lumen Maintenance Factor | 0.96 |
| Chromaticity Coordinates (x and y) | x=0.463/ y=0.42 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K |
| Power(W/M) | 379W/m |
| Lumen/0.5M | 418.32lm/m |
| Energy Efficiency Class | G |
Download datasheet: ERP COVEFLEX 2835 140.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self adhensive tape is torn with the led strip,otherwise the led strip will be damaged
When install the led strip,please note the installation technique.The led strip can be bent, but not distorted.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q2: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q3: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
